JA1N056S503UA, US $ 21.18-25.19 , Honeywell, JA1N056S503UA DataSheet download, circuit diagram from SeekIC.com

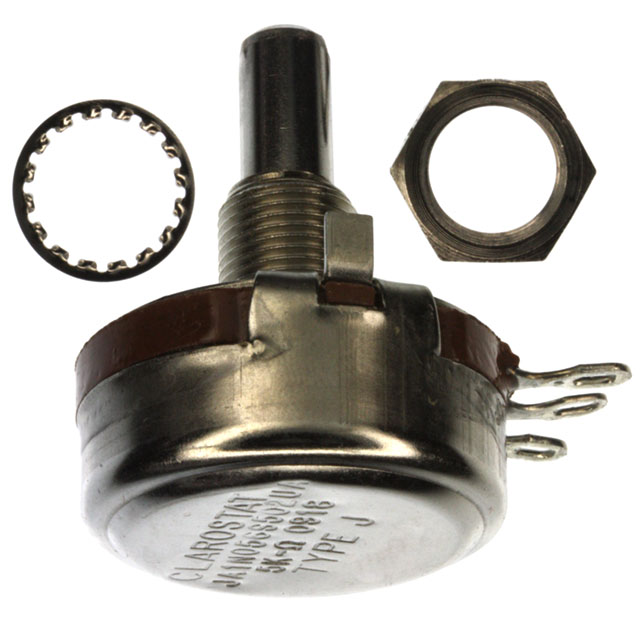

See larger image

SeekIC No. : 001244992 Detail

JA1N056S503UA: Potentiometers 50K Ohm 10% 2.25W 6.35mm

JA1N056S503UA Data Sheet

US $ 21.18~25.19 / Piece | Get Latest Price

Part Number:: JA1N056S503UA
Mfg:: Honeywell
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100

Unit Price
$25.19
$24.07
$21.91
$21.18

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

JA1N040S102UA evaluate
US $23.98 - 27.97 / Piece

Potentiometers RESISTIVE & OPTICAL
JA1N040S103UA evaluate
US $22.96 - 29.39 / Piece

Potentiometers 10KOhms 10% 2.25W 500V Industrial
JA1N040S252UA evaluate
US $23.98 - 27.97 / Piece

Potentiometers RESISTIVE & OPTICAL

Product Details

Quick Details

Product :	Potentiometer	Mounting Style :	Panel
Taper :	Linear	Resistance :	50 KOhms
Element Type :	Composition	Shaft Type :	Slotted
Termination Style :	Solder Lug	Voltage Rating :	500 Volts
Power Rating :	2.25 Watts	Tolerance :	10 %

Description

Number of Turns :
Mounting Style : Panel
Taper : Linear
Termination Style : Solder Lug
Shaft Type : Slotted
Tolerance : 10 %
Product : Potentiometer
Resistance : 50 KOhms
Element Type : Composition
Voltage Rating : 500 Volts
Power Rating : 2.25 Watts

Parameters:

Technical/Catalog Information	JA1N056S503UA
Vendor	Honeywell Sensing and Control/Clarostat
Category	Potentiometers, Variable Resistors
Resistance In Ohms	50.0K
Power (Watts)	2.25W
Number of Turns	Single
Adjustment Type	Side Adjustment
Tolerance	±10%
Package / Case	Round - 1.156" Dia x 0.625" H (29.36mm x 15.88mm)
Termination Style	Solder Lug
Actuator Diameter	6.32mm
Actuator Length	22.23mm
Actuator Type	Slotted Shaft
Temperature Coefficient	-
Resistive Material	Carbon
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	JA1N056S503UA JA1N056S503UA
