IXDI404SI-16

Product :
Supply Voltage - Max :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 125 C
Supply Voltage - Min : 4.5 V
Fall Time : 17 ns
Packaging : Tube
Rise Time : 18 ns
Supply Current : 3 mA
Package / Case : SOIC-CT-16
Type : Low Side Gate Driver


Features:

• Built using the advantages and compatibility of CMOS and IXYS HDMOS^TM processes
• Latch-Up Protected Over Entire Operating Range
• High Peak Output Current: 4A Peak
• Wide Operating Range: 4.5V to 25V
• High Capacitive Load Drive Capability: 1800pF in <15ns
• Matched Rise And Fall Times
• Low Propagation Delay Time
• Low Output Impedance
• Low Supply Current
• Two Drivers in Single Chip


Application

• Driving MOSFETs and IGBTs
• Motor Controls
• Line Drivers
• Pulse Generators
• Local Power ON/OFF Switch
• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
• Pulse Transformer Driver
• Class D Switching Amplifiers
• Limiting di/dt Under Short Circuit

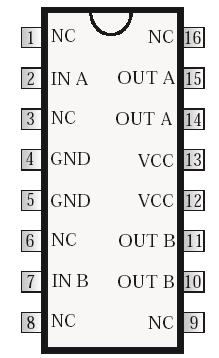

Pinout




Specifications

Supply Voltage  . . . . . . . . . . . . . . . . ..25V
All Other Pins . . . . . .  -0.3V to V_CC + 0.3V
Junction Temperature  . . . . . . . . . . .150
Storage Temperature  . . . . -65 to 150
Soldering Lead Temperature  . . . . .  300




Description

The IXDN404/IXDI404/IXDF404 is comprised of two 4 Ampere CMOS high speed MOSFET drivers. Each output can source and sink 4A of peak current while producing voltage rise and fall times of less than 15ns to drive the latest IXYS MOSFETs & IGBT's. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. A patent-pending circuit virtually eliminates CMOS power supply cross conduction and current shoot-through. Improved speed and drive capabilities are further enhanced by very low, matched rise and fall times.

The IXDN404 is configured as a dual non-inverting gate driver, the IXDI404 is a dual inverting gate driver, and the IXDF404 is a dual inverting + non-inverting gate driver.

The IXDN404/IXDI404/IXDF404 family are available in the standard 8 pin P-DIP (PI), SOP-8 (SI) and SOP-16 (SI-16) packages.

Parameters:

Technical/Catalog Information	IXDI404SI-16
Vendor	IXYS
Category	Integrated Circuits (ICs)
Configuration	Low-Side
Voltage - Supply	4.5 V ~ 35 V
Current - Peak	4A
Delay Time	36ns
Package / Case	16-SOIC
Packaging	Tube
Number of Outputs	2
Input Type	Inverting
Number of Configurations	2
Operating Temperature	-55°C ~ 125°C
High Side Voltage - Max (Bootstrap)	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXDI404SI 16 IXDI404SI16
