IX6R11

Features: • Floating High Side Driver with boot-strap Power supply along with a Low Side Driver.• Fully operational to 650V• ± 50V/ns dV/dt immunity• Gate drive power supply range: 10 - 35V• Undervoltage lockout for both output drivers• Separate Logic power supp...

product image

IX6R11 Picture
See larger image
SeekIC No. : 004381487 Detail

IX6R11: Features: • Floating High Side Driver with boot-strap Power supply along with a Low Side Driver.• Fully operational to 650V• ± 50V/ns dV/dt immunity• Gate drive power supply ...

IX6R11 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IX6R11
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Floating High Side Driver with boot-strap Power supply along with a Low Side Driver.
• Fully operational to 650V
• ± 50V/ns dV/dt immunity
• Gate drive power supply range: 10 - 35V
• Undervoltage lockout for both output drivers
• Separate Logic power supply range: 3.3V to VCL
• Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes
• Latch-Up protected over entire operating range
• High peak output current: 6A
• Matched propagation delay for both outputs
• Low output impedance
• Low power supply current
• Immune to negative voltage transients


Application

• Driving MOSFETs and IGBTs in half-bridge circuits
• High voltage, high side and low side drivers
• Motor Controls
• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
• Class D Switching Amplifiers


Pinout

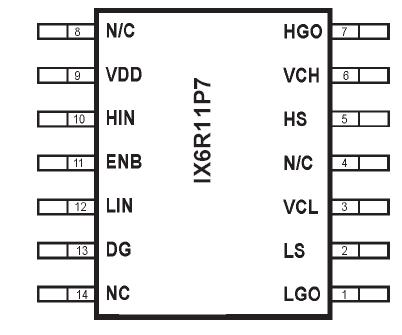

Connection Diagram


Specifications

Symbol Definition Min Max Units
VCH High side floating supply voltage -25 650 V
VHS High side floating supply offset voltage VCH-200 VCH+.3 V
VHGO High side floating output voltage VHS-.3 VCH+.3 V
VCL Low side fixed supply voltage -0.3 35 V
VLGO Low side output voltage -0.3 VCL+.3 V
VDD Logic supply voltage -0.3 VDG+35 V
VDG Logic supply offset voltage VLS-3.8 VLS+3.8 V
VIN Logic input voltage(HIN & LIN) VSS-.3 VDD+.3 V
dVS/dt Allowable offset supply voltage transient (IX6R11S3/P7)
(IX6R11S6)		 50 V/ns
PD Package power dissipation@ TA 25C (IX6R11S3/P7)
(IX6R11S6)		 2.5
31		 W
PD Package power dissipation@ TC 25C (IX6R11S3/P7)
(IX6R11S6)		 100
90		 W
RTHJA Thermal resistance, junction-to-ambient (IX6R11S3/P7)
(IX6R11S6)		 50
4		 K/W
RTHJc Thermal resistance, junction-to-case   150 K/W
TJ Junction Temperature -55 150
TS Storage temperature   300



Description

The IX6R11 Bridge Driver for N-channel MOSFETs and IGBTs with a high side and low side output, whose input signals reference the low side. The High Side driver can control a MOSFET or IGBT connected to a positive buss voltage up to 650V. The logic input stages are compatible with TTL or CMOS, have built-in hysteresis and are fully immune to latch up over the entire operating range. The IX6R11 can withstand dV/dt on the output side up to ± 50V/ns.

The IX6R11 comes in either the 14-PIN DIP package (IX6R11P7), the 16-PIN SOIC package (IX6R11S3) or the 18-PIN, heat sinkable, SOIC package (IX6R11S6).
