Product Details

Description



Features:

• Floating High Side Driver with boot-strap Power supply along with a Low Side Driver.
• Fully operational to 650V
• ± 50V/ns dV/dt immunity
• Gate drive power supply range: 10 - 35V
• Undervoltage lockout for both output drivers
• Separate Logic power supply range: 3.3V to VCL
• Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes
• Latch-Up protected over entire operating range
• High peak output current: 4A
• Matched propagation delay for both outputs
• Low output impedance
• Low power supply current
• Immune to negative voltage transients


Application

• Driving MOSFETs and IGBTs in half-bridge circuits
• High voltage, high side and low side drivers
• Motor Controls
• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
• Class D Switching Amplifiers


Pinout

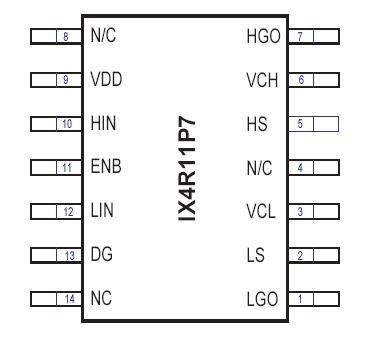

Connection Diagram


Specifications

Symbol Definition Min Max Units
VCH High side floating supply voltage -25 650 V
VHS High side floating supply offset voltage VCH-200 VCH+.3 V
VHGO High side floating output voltage VHS-.3 VCH+.3 V
VCL Low side fixed supply voltage -0.3 35 V
VLGO Low side output voltage -0.3 VCL+.3 V
VDD Logic supply voltage -0.3 VDG+35 V
VDG Logic supply offset voltage VLS-3.8 VLS+3.8 V
VIN Logic input voltage(HIN & LIN) VSS-.3 VDD+.3 V
dVS/dt Allowable offset supply voltage transient   50 V/ns
PD Package power dissipation@ TA 25C   1.25 W
PD Package power dissipation@ TC 25C   2.5 W
RTHJA Thermal resistance, junction-to-ambient   100 K/W
RTHJc Thermal resistance, junction-to-case   50 K/W
TJ Junction Temperature   150
TS Storage temperature -55 150



Description

The IX4R11 Bridge Driver for N-channel MOSFETs and IGBTs with a high side and low side output, whose input signals reference the low side. The High Side driver can control a MOSFET or IGBT connected to a positive buss voltage up to 650V. The logic input stages are compatible with TTL or CMOS, have built-in hysteresis and are fully immune to latch up over the entire operating range. The IX4R11 can withstand dV/dt on the output side up to ± 50V/ns.

The IX4R11 comes in either the 16-PIN SOIC package (IX4R11S3) or the 14-PIN DIP through-hole package (IX4R11P7)
