Product Details

Description



Features:

·  Operating Voltage Range: 3.0 to 18 V
·  Maximum input current of 1 mA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
·  Noise margin (over full package temperature range):
     1.0 V min @ 5.0 V supply
     2.0 V min @ 10.0 V supply
     2.5 V min @ 15.0 V supply

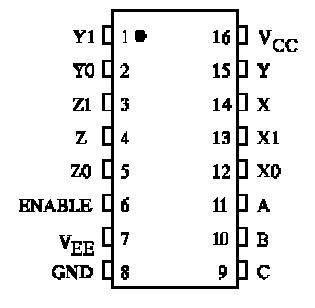

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.5 to +20 V
VIN DC Input Voltage (Referenced to GND) -0.5 to VCC +0.5 V
IIN DC Input Current, per Pin ±10 mA
PD Power Dissipation in Still Air 500*1 mW
Ptot Power Dissipation per Output Transistor 100 mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)		 260 °C
*Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
*1 - for Plastic DIP from -55° to +100°C, for SO Package from -55° to +65°C.
+Derating - Plastic DIP: - 12 mW/°C from 100° to 125°C
                 SO Package: - 7 mW/°C from 65° to 125°C


Description

The IW4053B analog multiplexer/demultiplexer is digitally controlled analog switches having low ON impedance and very low OFF leakage current. Control of analog signals up to 20V peak-to-peak can be achieved by digital signal amplitudes of 4.5 to 20V (if VCC - GND = 3V, a VCC - VEE of up to 13 V can be controlled; for VCC - VEE  level differences above 13V a VCC - GND of at least 4.5V is required).

These multiplexer circuits dissipate extremely low quiescent power over the full VCC -GND and VCC - VEE supply-voltage ranges, independent of the logic state of the control signals. When a logic "1"is present at the ENABLE input terminal all channels are off.

The IW4053B is a triple 2-channel multiplexer having three separate digital control inputs, A, B, and C, and an enable input. Each control input selects one of a pair of channels which are connected in a singlepole double-throw configuration.
