Features: • Operating Voltage Range: 3.0 to 18 V• Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C• Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V sup...
IW4015B: Features: • Operating Voltage Range: 3.0 to 18 V• Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C• Noise margin (over full p...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage (Referenced to GND) | -0.5 to +20 | V |
VIN | DC Input Voltage (Referenced to GND) | -0.5 to VCC +0.5 | V |
VOUT | DC Output Voltage (Referenced to GND) | -0.5 to VCC +0.5 | V |
IIN | DC Input Current, per Pin | ±10 | mA |
PD | Power Dissipation in Still Air, Plastic DIP+ SOIC Package+ |
750 500 |
mW |
PD | Power Dissipation per Output Transistor | 100 | mW |
Tstg | Storage Temperature | -65 to +150 | °C |
TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |

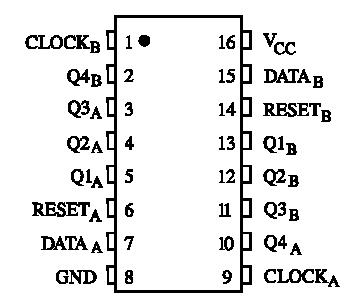

The IW4015B consists of two identical, independent, 4-stage serial-input/parallel-output registers. Each register has independent CLOCK and RESET inputs as well as a single serial DATA input. "Q" outputs are available from each of the four stages on both registers. All register stages are D-type, master-slave flip-flops. The logic level present at the DATA input is transferred into the first register stage and shifted over one stage at each positive-going clock transition. Resetting of all stages is accomplished by a high level on the reset line. Register expansion to 8 stages using one IW4015B package, or to more than 8 stages using additional IW4015B's is possible.
