Features: • Operating Voltage Range: 3.0 to 18 V• Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C• Noise margin (over full package temperature range):1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supp...
IW4013B: Features: • Operating Voltage Range: 3.0 to 18 V• Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C• Noise margin (over full p...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage (Referenced to GND) | -0.5 to +20 | V |
VIN | DC Input Voltage (Referenced to GND) | -0.5 to VCC +0.5 | V |
VOUT | DC Output Voltage (Referenced to GND) | -0.5 to VCC +0.5 | V |
IIN | DC Input Current, per Pin | ±10 | mA |
PD | Power Dissipation in Still Air, Plastic DIP+ SOIC Package+ |
750 500 |
mW |
PD | Power Dissipation per Output Transistor | 100 | mW |
Tstg | Storage Temperature | -65 to +150 | °C |
TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |

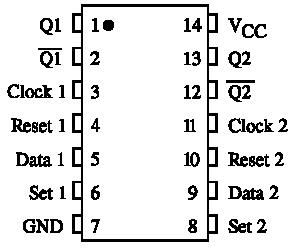

The IW4013B consists of two identical, independent data-type flipflops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line, respectively.
