Features: · Complies with Universal Serial Bus Specification Rev. 2.0
· Supports data transfer at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s)
· Two Original USB OHCI cores comply with Open Host Controller Interface Specification for USB Rev. 1.0a
· One Hi-Speed USB EHCI core complies with Enhanced Host Controller Interface Specification for Universal Serial Bus Rev. 1.0
· Supports PCI 32-bit, 33 MHz interface compliant with PCI Local Bus Specification Rev. 2.2, with support for D3cold standby and wake-up modes; all I/O pins are 3.3 V standard
· Compliant with PCI Bus Power Management Interface Specification Rev. 1.1 for all hosts (EHCI and OHCI), and supports all power states: D0, D1, D2, D3hot and D3cold
· CLKRUN support for mobile applications, such as internal notebook design
· Configurable subsystem ID and subsystem Vendor ID through external EEPROM
· Digital and analog power separation for better Electro-Magnetic Interference (EMI) and Electro-Static Discharge (ESD) protection
· Supports hot Plug and Play and remote wake-up of peripherals
· Supports individual power switching and individual overcurrent protection for downstream ports
· Supports partial dynamic port-routing capability for downstream ports that allows
sharing of the same physical downstream ports between the Original USB Host
Controller and the Hi-Speed USB Host Controller
· Uses 12 MHz crystal oscillator to reduce system cost and EMI emissions
· Supports dual power supply: PCI Vaux(3V3) and VCC
· Operates at +3.3 V power supply input
· Low power consumption
· Full industrial operating temperature range from -40 °C to +85 °C
· Full-scan design with high fault coverage (93 % to 95 %) ensures high quality
· Available in LQFP100 package.
Application · Digital consumer appliances
· Notebook
· PCI add-on card
· PC motherboard
· Set-Top Box (STB)

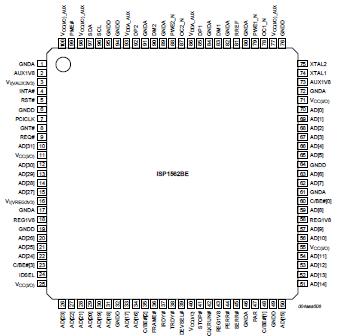

· Web appliances.Pinout
Specifications
| Symbol |
Parameter |
Conditions |
Min |
Max |
Unit |
| VCC(I/O) |
supply voltage to I/O pins |
|
-0.5 |
+4.6 |
V |
| VI(VREG3V3) |
supply voltage to internal regulator |
|
-0.5 |
+4.6 |
V |
| VCC(I/O)_AUX |
auxiliary supply voltage to I/O pins |
|
-0.5 |
+4.6 |
V |
| VI(VAUX3V3) |
auxiliary input voltage to internal regulator |
|
-0.5 |
+4.6 |
V |
| VDDA_AUX |
auxiliary supply voltage for analog block |
|
-0.5 |
+4.6 |
V |
| Ilu |
latch-up current |
VI < 0 or VI > VCC(I/O) |
- |
100 |
mA |
| Vesd |
electrostatic discharge voltage |
all pins (ILI < 1 A) |
-4 |
+4 |
kV |
| Tstg |
storage temperature |
|
-40 |
+125 |
|
DescriptionThe ISP1562 is a Peripheral Component Interconnect (PCI)-based, single-chip Universal Serial Bus (USB) Host Controller. It integrates two Original USB Open Host Controller Interface (OHCI) cores, one Hi-Speed USB Enhanced Host Controller Interface (EHCI) core, and two transceivers that are compliant with Hi-Speed USB and Original USB. The functional parts of the ISP1562 are fully compliant with Universal Serial Bus Specification Rev. 2.0, Open Host Controller Interface Specification for USB Rev. 1.0a, Enhanced Host Controller Interface Specification for Universal Serial Bus Rev. 1.0, PCI Local Bus Specification Rev. 2.2, and PCI Bus Power Management Interface Specification Rev. 1.1.
The integrated high performance USB transceivers allow the ISP1562 to handle all Hi-Speed USB transfer speed modes: high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s). The ISP1562 provides two downstream ports, allowing simultaneous connection of USB devices at different speeds.
The ISP1562 is fully compatible with various operating system drivers, such as Microsoft Windows standard OHCI and EHCI drivers that are present in Windows XP, Windows 2000 and Red Hat Linux.
The ISP1562 directly interfaces to any 32-bit, 33 MHz PCI bus. Its PCI pins can source 3.3 V. The PCI interface fully complies with PCI Local Bus Specification Rev. 2.2.
The ISP1562 is ideally suited for use in Hi-Speed USB mobile applications and embedded solutions. The ISP1562 uses a 12 MHz crystal.
