ISP1362

`  Complies fully with:
   - Universal Serial Bus Specification Rev. 2.0
   - On-The-Go Supplement to the USB 2.0 Specification Rev. 1.0a
`  Supports data transfer at full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s)
`  Adapted from Open Host Controller Interface Specification for USB Release 1.0a
`  USB OTG:
   - Supports Host Negotiation Protocol (HNP) and Session Request Protocol (SRP) for OTG dual-role devices
   - Provides status and control signals for software implementation of HNP and SRP
   - Provides programmable timers required for HNP and SRP
   - Supports built-in and external source of V_BUS
   - Output current of the built-in charge pump is adjustable by using an external capacitor
`  USB host:
   - Supports integrated physical 4096 bytes of multiconfiguration memory
   - Supports all four types of USB transfers: control, bulk, interrupt and isochronous
   - Supports multiframe buffering for isochronous transfer
   - Supports automatic interrupt polling rate mechanism
   - Supports paired buffering for bulk transfer
   - Directly addressable memory architecture; memory can be updated on-the-fly
`  USB device:
   - Supports high performance USB interface device with integrated Serial Interface Engine (SIE), buffer memory and transceiver
   - Supports fully autonomous and multiconfiguration DMA operation
   - Supports up to 14 programmable USB endpoints with 2 fixed control IN/OUT endpoints
   - Supports integrated physical 2462 bytes of multiconfiguration memory
   - Supports endpoints with double buffering to increase throughput and ease real-time data transfer
   - Supports controllable LazyClock (110 kHz ± 50 %) output during 'suspend'
`  Supports two USB ports: port 1 and port 2
   - Port 1 can be configured to function as a downstream port, an upstream port or an OTG port
   - Port 2 can be used only as a downstream port
`  Supports software-controlled connection to the USB bus (SoftConnect™)
`  Supports good USB connection indicator that blinks with traffic (GoodLink™)
`  Complies with USB power management requirements
`  Supports internal power-on and low-voltage reset circuit, with possibility of a software reset
`  Supports operation over the extended USB voltage range (4.0 V to 5.5 V) with 5 V tolerant I/O pads
`  High-speed parallel interface to most CPUs available in the market, such as Hitachi SH-3, Intel<sup>®</sup> StrongARM<sup>®</sup>, Philips XA, Fujitsu SPARClite<sup>®,</sup> NEC and Toshiba MIPS, ARM7/9, Motorola  ragonBall™ and PowerPC™ Reduced
   Instruction Set Computer (RISC):
   - 16-bit data bus
   - 10 Mbyte/s data transfer rate between the microprocessor and ISP1362
`  Supports Programmed I/O (PIO) or Direct Memory Access (DMA)
`  Supports 'suspend' and remote wake-up
`  Uses 12 MHz crystal or direct clock source with on-chip Phase-Locked Loop (PLL) for low Electro-Magnetic Interference (EMI)
`  Operates at +3.3 V power supply
`  Operating temperature range from −40 °C to +85 °C

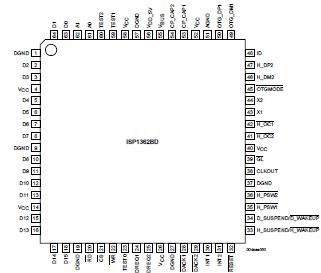

`  Available in 64-pin LQFP and TFBGA packages.

The ISP1362 is a single-chip Universal Serial Bus (USB) On-The-Go (OTG) controller integrated with the advanced Philips Slave Host Controller (PSHC) and the Philips ISP1181B Device Controller (DC). The USB OTG controller is compliant with On-The-Go Supplement to the USB 2.0 Specification Rev. 1.0a. The host and device controllers are compliant with Universal Serial Bus Specification Rev. 2.0, supporting data transfer at full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s).

The ISP1362 has two USB ports: port 1 and port 2. Port 1 can be hardware configured to function as a downstream port, an upstream port or an OTG port whereas port 2 can only be used as a downstream port. The OTG port can switch roles from host to peripheral, or from peripheral to host. The OTG port can become a host through the Host Negotiation Protocol (HNP) as specified in the OTG supplement.

A USB product with OTG capability can function either as a host or as a peripheral.For instance, with this dual-role capability, a Personal Computer (PC) peripheral such as a printer may switch roles from a peripheral to a host for connecting to a digital camera so that the printer can print pictures taken by the camera without using a PC. When a USB product with OTG capability is inactive, the USB interface is turned off. This feature has made OTG a technology well-suited for use in portable devices-such as, Personal Digital Assistant (PDA), Digital Still Camera (DSC) and mobile phone-in which power consumption is a concern. The ISP1362 is an OTG controller designed to perform such functions.
