Product Details

Description

Features:

` Fully complies with:
   ` Universal Serial Bus Specification Rev. 2.0
   ` On-The-Go Supplement to the USB 2.0 Specification Rev. 1.0a
   ` On-The-Go Transceiver Specification (CEA2011) Rev. 1.0
` Can transmit and receive serial data at both full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates
` Ideal for system ASICs or chip sets with built-in USB OTG dual-role core
` Supports mini USB analog car kit interface
` Supports various serial data interface protocols; transparent general-purpose buffer mode allows you to control the direction of data transfer
` Supports data line and V_BUS pulsing session request
` Contains Host Negotiation Protocol (HNP) command and status registers
` Supports serial I²C-bus™ interface for OTG status and command controls
` 2.7 V to 4.5 V power supply input range for the ISP1301
` Built-in charge pump regulator outputs 5 V at current greater than 8 mA
` Supports external charge pump
` Supports wide range interfacing I/O voltage (V_{DD_LGC} = 1.65 V to 3.6 V) for digital control logics
` 8 kV built-in electrostatic discharge (ESD) protection on the DP, DM, V_BUS and ID lines
` Full industrial grade operation from -40 °C to +85 °C
` Available in a small HVQFN24 (4* 4 mm²) halogen-free and lead-free package.

Application

· Mobile phone
· Digital camera
· Personal digital assistant
· Digital video recorder

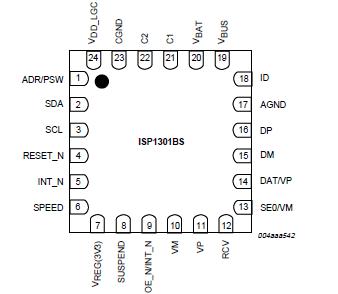

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
V_BAT	supply voltage		-0.5	+5.5	V
V_{DD_LGC}	I/O supply voltage		-0.5	+4.6	V
V_I	input voltage	V_I= -1.8 V to +5.4 V	-0.5	V_{DD_LGC} + 0.5	V
I_lU	latch-up current		-	100	mA
V_esd	electrostatic discharge voltage	I_LI < 1 A
		pins DP, DM, ID, ^[1]VBUS, AGND, CGND and DGND	-8	+8	kV
		all other pins	-20	+2	kV
T_stg	storage temperature		-60	+125

[1] Equivalent to discharging a 100 pF capacitor through a 1.5 k resistor (Human Body Model). A 4.7 mF capacitor is needed from V_REG(3V3) and V_BUS to ground.

Description

The ISP1301 is a Universal Serial Bus (USB) On-The-Go (OTG) transceiver device that is fully compliant with Universal Serial Bus Specification Rev. 2.0 and On-The-Go Supplement to the USB Specification Rev. 1.0a. The ISP1301 can transmit and receive serial data at both full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates.

It is ideal for use in portable electronics devices, such as mobile phones, digital still cameras, digital video cameras, Personal Digital Assistants (PDAs) and digital audio players. It allows USB Application Specific Integrated Circuits (ASICs), Programmable Logic Devices (PLDs) and any system chip set (with the USB host or device function built-in but without the USB physical layer) to interface to the physical layer of the USB.

The ISP1301 can interface to devices with digital I/O voltages in the range of 1.65 V to 3.6 V.

The ISP1301 is available in HVQFN24 package.
