Product Details

Description

Features:

· FULL-/HALF-DUPLEX OPERATION
· 1500Vrms ISOLATION (cont)
· 2500Vrms ISOLATION (1 min)
· 2.5Mbps PERFORMANCE
· LOOP-TEST FACILITY

Application

· BUS TRANSMISSION SYSTEMS
· GROUND LOOP ISOLATION

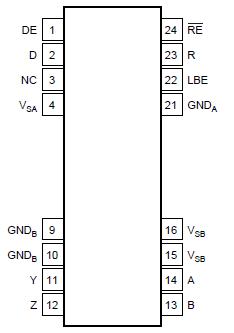

Pinout

Connection Diagram

Specifications

Supply Voltage: V_SA ............................................................. 0.5V to +6V
V_SB ............................................................. 0.5V to +6V
Continuous Isolation Voltage .................................................... 1500Vrms
Storage Temperature .................................................... 40°C to +125°C
Lead Temperature (soldering, 10s) .............................................. +300°C

Description

ISO422 provides 1500Vrms isolation for industrial bus transmission systems. ISO422 may be configured in full or half duplex modes providing the user with best flexibility for the application. Transmission rates of 2.5Mbps can be obtained covering most requirements. A loop-back test facility is included. LBE allows data on the D input to be routed to the R output for test purposes.

ISO422 is available in 24-pin PDIP and 24-pin Gull Wing⁽¹⁾ packages and is specified over the temperature range 40°C to +85°C.

NOTE: (1) Gull Wing version available Q1'99.
