ISL98001

Features: • 140MSPS, 170MSPS, 210MSPS, 240MSPS, and 275MSPS maximum conversion rates• Glitchless Macrovision®-compliant sync separator• Extremely fast recovery from VCR head switching• Low PLL clock jitter (250ps p-p @ 170MSPS)• 64 interpixel sampling positions...

product image

ISL98001 Picture
See larger image
SeekIC No. : 004380781 Detail

ISL98001: Features: • 140MSPS, 170MSPS, 210MSPS, 240MSPS, and 275MSPS maximum conversion rates• Glitchless Macrovision®-compliant sync separator• Extremely fast recovery from VCR head sw...

ISL98001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL98001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 140MSPS, 170MSPS, 210MSPS, 240MSPS, and 275MSPS maximum conversion rates
• Glitchless Macrovision®-compliant sync separator
• Extremely fast recovery from VCR head switching
• Low PLL clock jitter (250ps p-p @ 170MSPS)
• 64 interpixel sampling positions
• 0.35Vp-p to 1.4Vp-p video input range
• Programmable bandwidth (100MHz to 780MHz)
• 2 channel input multiplexer
• RGB 4:4:4 and YUV 4:2:2 output formats
• 5 embedded voltage regulators allow operation fromsingle 3.3V supply and enhance performance, isolation
• Completely independent 8-bit gain/10-bit offset control
• Pb-free plus anneal available (RoHS compliant)


Pinout

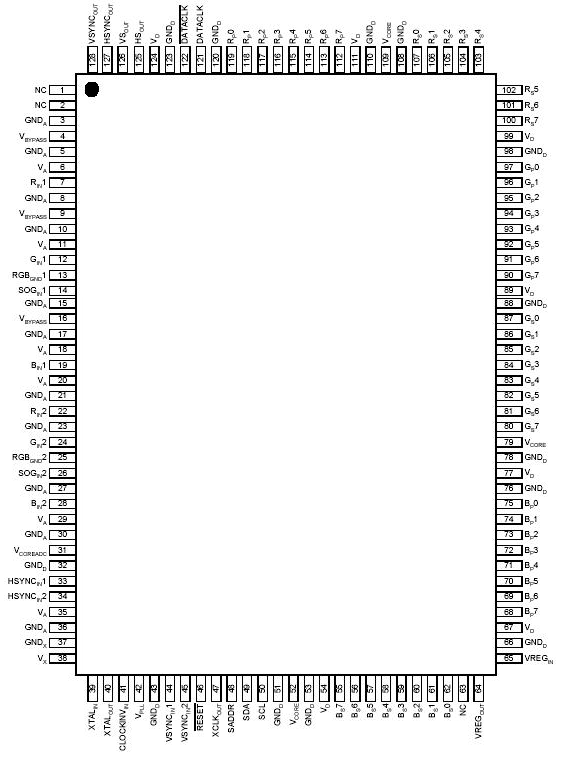

Connection Diagram






Specifications

Voltage on VA, VD, or VX(referenced to GNDA = GNDD = GNDX). . 4.0V
Voltage on any Analog Input Pin (referenced to GNDA). . . -0.3V to VA
Voltage on any Digital Input Pin (referenced to GNDD). -0.3V to +6.0V
Current into any Output Pin . . . . . . . . . . . . . . . . . . . . . . . . . . ±20mA
ESD Classification
Human Body Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  2000V
Machine Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  200V
