ISL90842

Features: • Four potentiometers in one package• 256 resistor taps0.4% resolution• I2C serial interface• Wiper resistance: 70 typical @ 3.3V• Standby current <5A max• Power supply: 2.7V to 5.5V• 50k, 10k total resistance• 14 Lead TSSOPPinoutSpecifi...

product image

ISL90842 Picture
See larger image
SeekIC No. : 004380690 Detail

ISL90842: Features: • Four potentiometers in one package• 256 resistor taps0.4% resolution• I2C serial interface• Wiper resistance: 70 typical @ 3.3V• Standby current <5A max&...

ISL90842 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL90842
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Four potentiometers in one package
• 256 resistor taps0.4% resolution
• I2C serial interface
• Wiper resistance: 70 typical @ 3.3V
• Standby current <5A max
• Power supply: 2.7V to 5.5V
• 50k, 10k total resistance
• 14 Lead TSSOP




Pinout

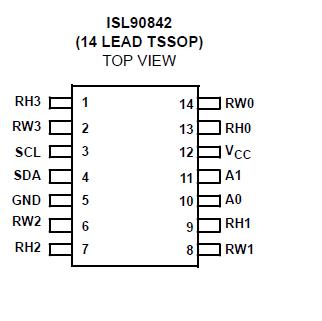

Connection Diagram




Specifications

Storage temperature . . . . . . . . . . . . . . . . . . . . . .. . . . . . .. . .-65°C to +150°C
Voltage at any digital interface pin
with respect to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. -0.3V to VCC+0.3
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . . -0.3V to +6V
Voltage at any DCP pin with
respect to GND. . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .. . . . .. . -0.3V to VCC
Lead temperature (soldering, 10s). . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 300°C
IW (10s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .. . . . . ±6mA




Description

The ISL90842 integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated circuit.The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated Wiper Register (WR) that can be directly written to and read by the user. The contents of the WR controls the position of the wiper.

The DCPs can be used as three-terminal potentiometers or as two-terminal variable resistors in a wide variety of applications including control, parameter adjustments, and signal processing.
