ISL8487E

Features:

* RS-485 I/O Pin ESD Protection . . . . . . . . . . ±15kV HBM
- Class 3 ESD Level on all Other Pins . . . . . . >7kV HBM
* Fractional Unit Load Allows up to 256 Devices on the Bus
* Specified for 10% Tolerance Supplies
* High Data Rate Version (ISL81487E) . . . . . up to 5Mbps
* Slew Rate Limited Versions for Error Free Data Transmission (ISL8487E, ISL81487L). . . . .up to 250kbps
* Low Current Shutdown Mode (Except ISL81487E). . . 0.5A
* Low Quiescent Supply Current:
- ISL8487E, ISL81487L . . . . . . . . . . . . . . . 145A (Max.)
- ISL81487E . . . . . . . . . . . . . . . . . . . . . . . . 420A (Max.)
* -7V to +12V Common Mode Input Voltage Range
* Three State Rx and Tx Outputs
* 30ns Propagation Delays, 5ns Skew (ISL81487E)
* Half Duplex Pinouts
* Operate from a Single +5V Supply (10% Tolerance)
* Current Limiting and Thermal Shutdown for Driver Overload Protection
* Pin Compatible Replacements for: MAX487E, (ISL8487E); LTC1487, ADM1487 (ISL81487L); MAX1487E, ST485ER
(ISL81487E)
* Pb-Free Plus Anneal Available (RoHS Compliant)




Application

* High Node Count Networks
* Automated Utility Meter Reading Systems
* Factory Automation
* Security Networks
* Building Environmental Control Systems
* Industrial/Process Control Networks

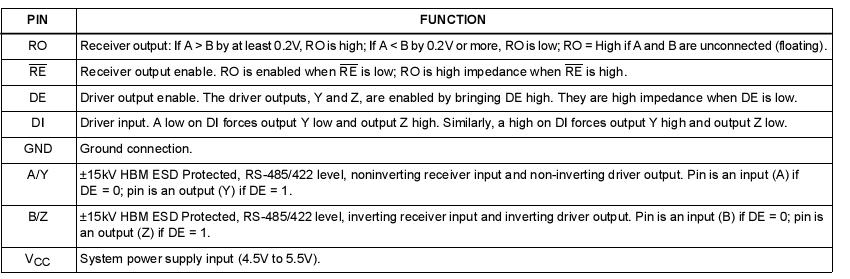

Pinout






Specifications

V_CC to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Input Voltages
DI, DE, RE . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.5V to (V_CC +0.5V)
Input/Output Voltages
A/Y, B/Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -8V to +12.5V
RO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....-0.5V to (V_CC +0.5V)
Short Circuit Duration
Y, Z. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . ...See Specification Table





Description

These Intersil RS-485/RS-422 devices are ESD protected, fractional unit load (UL), BiCMOS, 5V powered, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Each driver output/ receiver input is protected against ±15kV ESD strikes, without latch-up. Unlike competitive devices, this Intersil family is specified for 10% tolerance supplies (4.5V to 5.5V). All devices present a 1/8 "unit load" to the RS-485 bus, which allows up to 256 transceivers on the network for large node count systems (e.g., process automation, remote meter reading systems). In a remote utility meter reading system, individual (apartments for example) utility meter readings are routed to a concentrator via an RS-485 network, so the high allowed node count minimizes the number of repeaters required to network all the meters. Data for all meters is then read out from the concentrator via a single access port, or a wireless link. Slew rate limited drivers on the ISL8487E and ISL81487L reduce EMI, and minimize reflections from improperly terminated transmission lines, or unterminated stubs in multidrop and multipoint applications. Data rates up to 250kbps are achievable with these devices. Data rates up to 5Mbps are achievable by using the ISL81487E, which features higher slew rates. Receiver (Rx) inputs feature a "fail-safe if open" design, which ensures a logic high Rx output if Rx inputs are floating. Driver (Tx) outputs are short circuit protected, even for voltages exceeding the power supply voltage. Additionally, on-chip thermal shutdown circuitry disables the Tx outputs to prevent damage if power dissipation becomes excessive. These half duplex devices multiplex the Rx inputs and Tx outputs to allow transceivers with Rx and Tx disable functions in 8 lead packages.
