Product Details

Description



Features:

• ESD Protection for RS-232 I/O Pins to ±15kV (IEC61000)
• Drop In Replacement for MAX3384E, SP385E
• Low Power, Pin Compatible Upgrade for 5V MAX222,
SP310E, ADM222, and LT1780
• Single SHNDPin Disables Transmitters and Receivers
• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V
• RS-232 Compatible with VCC= 2.7V
• Latch-Up Free
• On-Chip Voltage Converters Require Only Four External 0.1µF Capacitors
• Receiver Hysteresis For Improved Noise Immunity
• Very Low Supply Current. . . . . . . . . . . . . . . . . . . . 0.3mA
• Guaranteed Minimum Data Rate. . . . . . . . . . . . 250Kbps
• Guaranteed Minimum Slew Rate. . . . . . . . . . . . . . . 6V/µs
• Wide Power Supply Range . . . . . . . Single +3V to +5.5V
• Low Supply Current in Powerdown State. . . . . . . . . < 1µA




Application

•Any System Requiring RS-232 Communication Ports
- Battery Powered, Hand-Held, and Portable Equipment
- Laptop Computers, Notebooks, Palmtops
- Modems, Printers and other Peripherals
- Digital Cameras
- Cellular/Mobile Phones

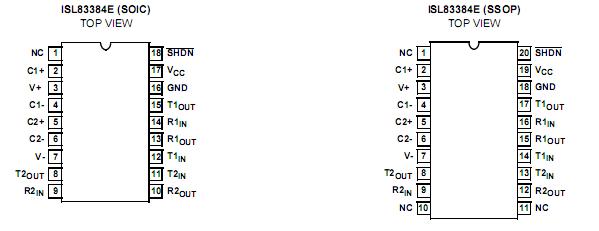

Pinout

Connection Diagram




Specifications

VCCto Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 6V
V+ to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 7V
V- to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3V to -7V
V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14V
Input Voltages
TIN, SHND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . -0.3V to 6V
RIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .±25V
Output Voltages
TOUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±13.2V
ROUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to VCC+0.3V
Short Circuit Duration
TOUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .Continuous
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . See Specification Table




Description

The Intersil ISL83384E contains 3.0V to 5.5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC= 3.0V. Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chipcharge pumps, coupled with a manual powerdown function reduces the standby supply current to a 1µA trickle. Small footprint packaging, and the use of small, low value capacitors ensure board space savings as well.Data rates greater than 250Kbps are guaranteed at worst case load conditions. This device is fully compatible with 3.3V only systems, mixed 3.3V and 5.0Vsystems, and 5.0V only systems.

The single pin powerdown function (SHND= 0) disables all the transmitters and receivers, while shutting down the charge pump to minimize supply current drain.Table 1 summarizes the features of the ISL83384E, while Application Note AN9863 summarizes the features of each device comprising the ICL32XX 3V family.
