ISL8102

Features: • Integrated Multi-Phase Power Conversion - 1 or 2 Phase Operation• Precision Output Voltage Regulation - Differential Remote Voltage Sensing - ±0.8% System Accuracy Over Temperature (for REF=0.6V and 0.9V) - ±0.5% System Accuracy Over Temperature (for REF=1.2V and 1.5V) - Us...

product image

ISL8102 Picture
See larger image
SeekIC No. : 004380499 Detail

ISL8102: Features: • Integrated Multi-Phase Power Conversion - 1 or 2 Phase Operation• Precision Output Voltage Regulation - Differential Remote Voltage Sensing - ±0.8% System Accuracy Over Tempe...

ISL8102 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL8102
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Integrated Multi-Phase Power Conversion
  - 1 or 2 Phase Operation
• Precision Output Voltage Regulation
  - Differential Remote Voltage Sensing
  - ±0.8% System Accuracy Over Temperature (for REF=0.6V and 0.9V)
  - ±0.5% System Accuracy Over Temperature (for REF=1.2V and 1.5V)
  - Usable for output voltages not exceeding 2.3V
  - Adjustable Reference-Voltage Offset
• Precision Channel Current Sharing
  - Uses Loss-Less rDS(ON) Current Sampling
• Optional Load Line (Droop) Programming
  - Uses Loss-Less Inductor DCR Current Sampling
• Variable Gate-Drive Bias - 5V to 12V
• Internal or External Reference Voltage Setting
  - On-Chip Adjustable Fixed DAC Reference voltage with 2-bit Logic Input Selects from Four Fixed Reference Voltages (0.6V, 0.9V, 1.2V, 1.5V)
  - Reference can be Changed Dynamically
  - Can use an External Voltage Reference
• Overcurrent Protection
• Multi-tiered Overvoltage Protection
  - OVP Pin to Drive Optional Crowbar Device
• Selectable Operation Frequency up to 1.5MHz per phase
• Digital Soft-Start
• Capable of Start-up in a Pre-Biased Load
• Pb-Free Plus Anneal Available (RoHS Compliant)


Application

• High Current DDR/Chipset core voltage regulators
• High Current, Low voltage DC/DC converters
• High Current, Low voltage FPGA/ASIC DC/DC converters


Pinout

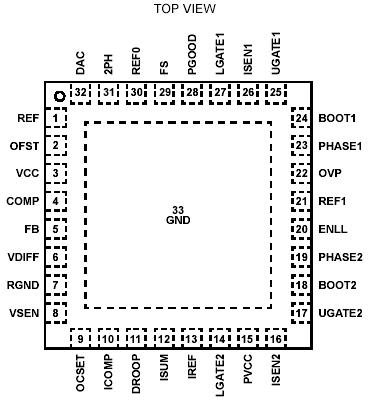

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6V
Supply Voltage, PVCC. . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +15V
Absolute Boot Voltage, VBOOT . . . . . . . .GND - 0.3V to GND + 36V
Phase Voltage, VPHASE . . . . . . . . GND - 0.3V to 15V (PVCC = 12)
  GND - 8V (<400ns, 20µJ) to 24V (<200ns, VBOOT-PHASE = 12V)
Upper Gate Voltage, VUGATE . . . .VPHASE - 0.3V to VBOOT + 0.3V
           VPHASE - 3.5V (<100ns Pulse Width, 2µJ) to VBOOT + 0.3V
Lower Gate Voltage, VLGATE. . . . . . . . GND - 0.3V to PVCC + 0.3V
                      GND - 5V (<100ns Pulse Width, 2µJ) to PVCC+ 0.3V
Input, Output, or I/O Voltage . . . . . . . . . GND - 0.3V to VCC + 0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . .Class I JEDEC STD
