ISL8101

Features:

• Integrated Two-Phase Power Conversion
• 5V to 12V Input Voltage Conversion
• Precision Channel Current Sharing
- Loss-Less Current Sampling - Uses r_DS(ON)
• Precision Output Voltage Regulation
- ±1% System Accuracy Over Temperature (Commercial)
• Microprocessor Voltage Identification Inputs
- Up to a 6-Bit DAC
- Selectable between Intel's VRM9, VRM10, or AMD's Hammer DAC codes
• Fast Transient Recovery Time
• Overcurrent Protection
• Pre-Biased Output Start-up Operation
• Sources and Sinks Output Current
- Bus Termination Applications
• Improved, Multi-tiered Overvoltage Protection
• QFN Package:
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Package Outline
- Near Chip Scale Package footprint, which improves PCB efficiency and has a thinner profile
• Pb-Free Plus Anneal Available (RoHS Compliant)

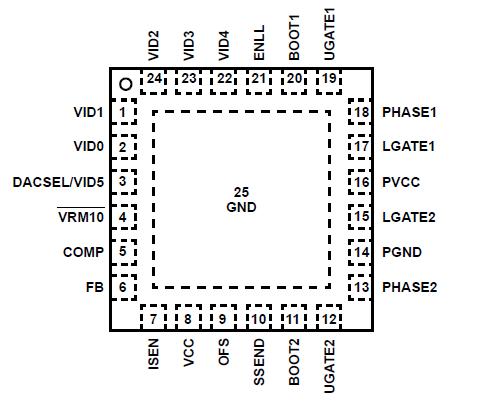

Pinout






Specifications

Supply Voltage, VCC, PVCC . . . . . . . . . . . . . . . . . . -0.3V to +6.25V
Absolute Boot Voltage, V_BOOT ............ . . . PGND - 0.3V to PGND + 27V
Phase Voltage, V_PHASE . . . . . . . ............ . . V_BOOT - 7V to V_BOOT + 0.3V
Upper Gate Voltage, V_UGATE . . .............. .V_PHASE - 0.3V to V_BOOT + 0.3V
Lower Gate Voltage, V_LGATE. . . . . .......... . . PGND - 0.3V to VCC + 0.3V
Input, Output, or I/O Voltage . . . . . . ........ . . GND - 0.3V to VCC + 0.3V
ESD Classification . . . . . . . . . . . . . . ........ . . .HBM Class 1 JEDEC STD




Description

The ISL8101 two-phase PWM control IC provides a precision voltage regulation system for advanced loads up to 60A-80A. Multiphase power conversion is a marked departure from single phase converter configurations employed to satisfy the increasing current demands of modern microprocessors and other electronic circuits. By distributing the power and load current, implementation of multiphase converters utilize smaller and lower cost transistors with fewer input and output capacitors. These reductions accrue from the higher effective conversion frequency with higher frequency ripple current due to the phase interleaving process of this topology.

Outstanding features of this controller IC include programmable VID codes compatible with Intel VRM9, VRM10, as well as AMD's Hammer microprocessors, along with a system regulation accuracy of ±1%. The ISL8101, though, does not intrinsically allow for load-line regulation (no droop).

Important features of this controller IC include a set of sophisticated overvoltage and overcurrent protection. Overvoltage results in the converter turning the lower MOSFETs ON to clamp the rising output voltage and protect the microprocessor. Like other Intersil multiphase controllers, the ISL8101 uses cost and space-saving r_DS(ON) sensing for channel current balance and overcurrent protection. Channel current balancing is automatic and accurate with the integrated current-balance control system. Overcurrent protection can be tailored to any application with no need for additional parts. These features provide intelligent protection for modern power systems.
