ISL8010

Features: •Less than 0.18in 2 footprint for the complete 600mA converter•Components on one side of PCB•Max height 1.1mm MSOP10•Power-Good (PG) output•Internally-compensated voltage mode controller•Up to 95% efficiency•<1µA shutdown current•1...

product image

ISL8010 Picture
See larger image
SeekIC No. : 004380488 Detail

ISL8010: Features: •Less than 0.18in 2 footprint for the complete 600mA converter•Components on one side of PCB•Max height 1.1mm MSOP10•Power-Good (PG) output•Internally-compens...

ISL8010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL8010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Less than 0.18in 2 footprint for the complete 600mA converter
•Components on one side of PCB
•Max height 1.1mm MSOP10
•Power-Good (PG) output
•Internally-compensated voltage mode controller
•Up to 95% efficiency
•<1µA shutdown current
•120µA quiescent current
•Hiccup mode overcurrent and over-temperature protection
•External synchronizable up to 12MHz
•Pb-free plus anneal available (RoHS compliant)




Application

•PDA and pocket PC computers
•Bar code readers
•Cellular phones
•Portable test equipment
•Li-Ion battery powered devices
•Small form factor (SFP) modules

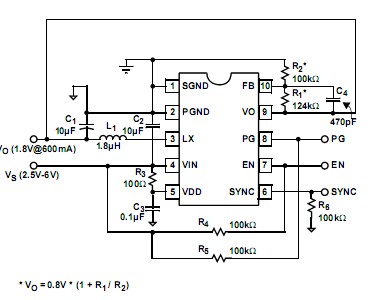

Pinout






Specifications

VIN, VDD, PG to SGND . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6.5V
LX to PGND. . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to (VIN+ +0.3V)
SYNC, EN, VO, FB to SGND. . . . . . . . . . . . ... -0.3V to (VIN+ +0.3V)
PGND to SGND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V
Peak Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800mA
Thermal Resistance (Typical)JA(°C/W)
MSOP10 Package (Note 1) . . . . . . . . . . . . . . . . . . . 130
Operating Ambient Temperature . . . . . . . . . . . . . ..-40°C to +85°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+125°C




Description

The ISL8010 is a synchronous, integrated FET 600mA step-down regulator which operates from an input of 2.5V to 5.5V. The output voltage is user-adjust able with a pair of external resistors.

When the load is very light, the regulator automatically operates in the PFM mode, thus achieving high efficiency at light load (>70% for 1mA load). When the load increases, the regulator automatically switches over to a voltage-mode PWM operating at nominal 1.4MHz switching frequency. The efficiency is up to 95%.

The ISL8010 can also operate in a fixed PWM mode or be synchronized to an external clock up to 12MHz for improved EMI performance.
