ISL6740

Features: • Precision Duty Cycle and Deadtime Control• 95A Startup Current• Adjustable Delayed Over Current Shutdown and Re-Start (ISL6740)• Adjustable Short Circuit Shutdown and Re-Start• Adjustable Oscillator Frequency Up to 2MHz• Bidirectional Synchronization...

product image

ISL6740 Picture
See larger image
SeekIC No. : 004380443 Detail

ISL6740: Features: • Precision Duty Cycle and Deadtime Control• 95A Startup Current• Adjustable Delayed Over Current Shutdown and Re-Start (ISL6740)• Adjustable Short Circuit Shutdown...

ISL6740 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL6740
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Precision Duty Cycle and Deadtime Control
• 95A Startup Current
• Adjustable Delayed Over Current Shutdown and Re-Start (ISL6740)
• Adjustable Short Circuit Shutdown and Re-Start
• Adjustable Oscillator Frequency Up to 2MHz
• Bidirectional Synchronization
• Inhibit Signal
• Internal Over Temperature Protection
• System Over Temperature Protection Using a Thermistor or Sensor
• Adjustable Soft Start
• Adjustable input Under Voltage Lockout
• Fault Signal
• Tight Tolerance Voltage Reference Over Line, Load, and Temperature
• Pb-free available




Application

• Telecom and Datacom Power
• Wireless Base Station Power
• File Server Power
• Industrial Power Systems
• DC Transformers and Buss Regulators

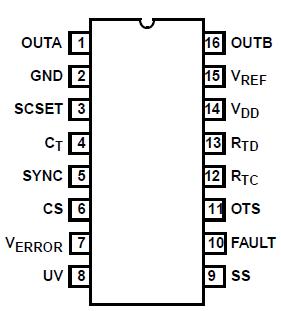

Pinout






Specifications

Supply Voltage, VDD . . . . . . . . . . . . . . . . . . .. GND - 0.3V to +20.0V
OUTA, OUTB, Signal Pins . . . . . . . . . . . . . . . . ... GND - 0.3V to VREF
VREF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. GND - 0.3V to 6.0V
Peak GATE Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5A
ESD Classification
Human Body Model (Per MIL-STD-883 Method 3015.7) .... .1500V
Charged Device Model (Per EOS/ESD DS5.3, 4/14/93) . . ....1000V




Description

The ISL6740, ISL6741 family of adjustable frequency, low power, pulse width modulating (PWM) voltage mode (ISL6740) and current mode (ISL6741) controllers is designed for a wide range of power conversion applications using half-bridge, full bridge, and push-pull configurations. These controllers provide an extremely flexible oscillator that allows precise control of frequency, duty cycle, and deadtime.

This advanced BiCMOS design features low operating current, adjustable switching frequency up to 1MHz, adjustable soft start, internal and external over temperature protection, fault annunciation, and a bidirectional SYNC signal that allows the oscillator to be locked to paralleled units or to an external clock for noise sensitive applications.
