ISL6721

Features:

• 1A MOSFET Gate Driver
• 100A Startup Current
• Fast Transient Response with Peak Current Mode Control
• Adjustable Switching Frequency up to 1MHz
• Bi-Directional Synchronization
• Low Power Disable Mode
• Delayed Restart from OV and OC Shutdown Faults
• Adjustable Slope Compensation
• Adjustable Soft-start
• Adjustable Overcurrent Shutdown Delay
• Adjustable UV and OV Monitors
• Leading Edge Blanking
• Integrated Thermal Shutdown
• 1% Tolerance Voltage Reference
• Pb-free Plus Anneal Available (RoHS Compliant)




Application

• Telecom and Datacom Power
• Wireless Base Station Power
• File Server Power
• Industrial Power Systems
• Isolated Buck and Flyback Regulators
• Boost Regulators

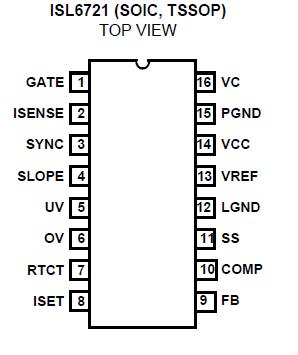

Pinout






Specifications

Supply Voltage, V_CC, V_C . ................. . . . . . . . . . . . . . . GND - 0.3V to +20.0V
GATE . . . . . . . . . . . ................................ . . . . GND - 0.3V to Gate Output Limit Voltage
PGND to LGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.3V
VREF . . . . . . . . . . . . . . . . . . . . ............... . . . . . . . . . . . . GND - 0.3V to 5.3V
Signal Pins . . . . . . . . . . . . ................. . . . . . . . . . . . . . . GND - 0.3V to VREF
Peak GATE Current . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1A
ESD Classification
Human Body Model (Per JESD22-A114C.01) ...... . . . . . . . . . .1250V
Charged Device Model (Per JESD22-C101-A) ...... . . . . . . . . .1000V




Description

The ISL6721 is a low power, single-ended pulse width modulating (PWM) current mode controller designed for a wide range of DC/DC conversion applications including boost, flyback, and isolated output configurations. Peak current mode control effectively handles power transients and provides inherent overcurrent protection. Other features include a low power mode where the supply current drops to less than 200A during overvoltage and overcurrent shutdown faults. This advanced BiCMOS design features low operating current, adjustable operating frequency up to 1MHz, adjustable soft-start, and a bi-directional SYNC signal that allows the oscillator to be locked to an external clock for noise sensitive applications.
