ISL6592

Features: * Multiphase power conversion - 2- to 6-phase operation * 300kHz to 1.5MHz switching frequency* Supports Intel(R) VR 10.x, AMD(R) , and custom VID codes* Internal high precision voltage reference - ±5mV voltage setpoint accuracy* Precision digital current sense calibration - ±14mV loadli...

product image

ISL6592 Picture
See larger image
SeekIC No. : 004380399 Detail

ISL6592: Features: * Multiphase power conversion - 2- to 6-phase operation * 300kHz to 1.5MHz switching frequency* Supports Intel(R) VR 10.x, AMD(R) , and custom VID codes* Internal high precision voltage re...

ISL6592 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL6592
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Multiphase power conversion
   - 2- to 6-phase operation
* 300kHz to 1.5MHz switching frequency
* Supports Intel(R) VR 10.x, AMD(R) , and custom VID codes
* Internal high precision voltage reference
   - ±5mV voltage setpoint accuracy
* Precision digital current sense calibration
   - ±14mV loadline accuracy
* Precise digital current balancing with programmable offsets for thermal balancing
* Digitally programmable loadline and loop compensation
* Differential voltage sense
* Digital temperature sensor compensation
* Active Transient Response (ATR) enables meeting transient requirements with reduced output capacitance
*I2 C interface for monitoring, control and configuration
* Internal non-volatile memory (NVM) to store custom  configurations with four programmable system  configurations
* Extensive fault detection capability with two user configurable output fault pins
   - Input Undervoltage
   - Output Under/Overvoltage
   - High Side Short
   - Per Phase and Total Output Current
   - Multiple Internal and External Temperature Limits
   - -NVM Configuration
   - Calibration Range and Time-Out
* Configurable latched fault or autonomous recovery shutdown
* Single +3.3V supply operation
* 48 lead LQFP plastic package
* Commercial temperature range of 0 to 85 ambient
* Pb-Free Plus Anneal Available (RoHS Compliant)


Application

* Core power regulation for Intel(R) and AMD(R) mprocessors
* Intelligent point-of-load (POL) power regulation


Pinout

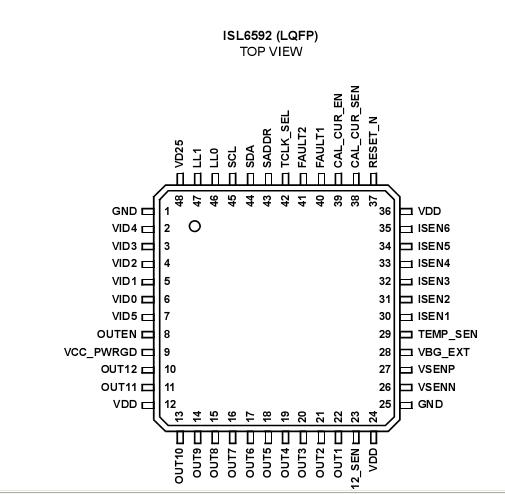

Connection Diagram


Specifications

Supply Voltage (VDD )  . . . . . . . . . . . . . . . . . . . . . . . -0.50V to 4.25V
All pins except ISENx and ground. . . . . . . . . . . . . .   -0.50V to 4.25V
All ISENx pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   -0.50V to 3.0V
All ground pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -0.50V to 0.50V
Differential Voltage (VSEN_DIFF ) . . . . . . . . . . . . . . . . . . . . . . . .  2.5V
ESD Rating
   Human Body Model (Per MIL-STD-883 Method 3015.7)
   (100pF, 1.5k ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,000V
   Charged Device Model (Per EOS/ESD DS5.3, 4/14/93) . . . . .1,000V
   Machine Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300V
