Features:

• Open Architecture features software programmable control loop compensation enabling optimal system performance
   - User accessible asynchronous serial interface
• Intel VR10
   - 6-bit Dynamic VID™
   - Output voltage regulation range of 0.8375V to 1.600Vdc
• 250kHz to 1MHz switching frequency
• 100% digital control and signaling
• Active Transient Response (ATR) control algorithms for minimized voltage droop and overshoot
• Controls up to six ISL6580 intelligent power stages (20A per phase, 120A total system current)
• Programmable Adaptive voltage positioning (AVP) load line
• Configurable control loop parameters (with optional external EEPROM)
• Programmable MOSFET dead time control
• High speed voltage and current control loops
• PWRGD and OUTEN
• Serial interface to ISL6580 power stages for system monitoring and configuration
• 64 Ld 9x9 QFN package
• QFN Package Option
   - QFN Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Product Outline
   - QFN Near Chip Scale Package Footprint; Improves PCB Efficiency, Thinner in Profile.


Pinout

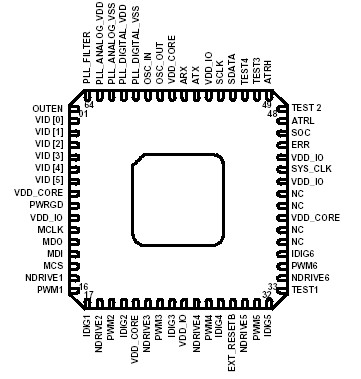

Connection Diagram


Specifications

Supply Voltage
   (VDD_IO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +3.63V
   (VDD_Core) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +1.98V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5kV
