ISL6580

Features: •VIN = 12V•Phase switching frequencies of 250kHz to 1MHz•Phase current capability up to 25A•High Side P-channel MOSFET •Low Side MOSFET drivers•Accurate, lossless, Current Sense•Programmable MOSFET non-overlap timing (through the ISL6590 Digital ...

product image

ISL6580 Picture
See larger image
SeekIC No. : 004380396 Detail

ISL6580: Features: •VIN = 12V•Phase switching frequencies of 250kHz to 1MHz•Phase current capability up to 25A•High Side P-channel MOSFET •Low Side MOSFET drivers•Accurate...

ISL6580 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL6580
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•VIN = 12V
•Phase switching frequencies of 250kHz to 1MHz
•Phase current capability up to 25A
•High Side P-channel MOSFET
•Low Side MOSFET drivers
•Accurate, lossless, Current Sense
•Programmable MOSFET non-overlap timing (through the
 ISL6590 Digital Controller)
•Active Transient Response (ATR) minimizes voltage
 droop/overshoot during large load current transients.
•Serial control interface for system monitoring and
  configuration (with ISL6590 Controller)
 -Input Under Voltage Protection
 -Output Under/Over Voltage Protection
 -Peak Current Limit
 -Thermal Shutdown
 -ATR Limits
•Provides an optimal power solution when combined with
 the ISL6590 Digital Controller
 -Output voltage regulation range of 0.3VDC to 1.85VDC
 -VRM-9 and VRM-10 VID Codes
•Digital interface for high noise immunity and point-of-load
 placement
•On board analog-to-digital converters
 -10 Msample/sec voltage A/D
 -1 Msample/sec current A/D

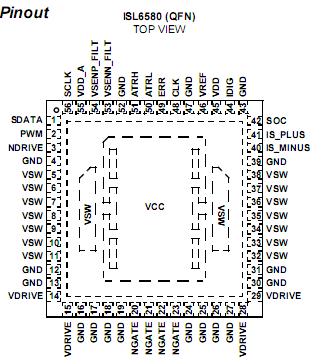

Pinout

Connection Diagram


Specifications

VCC . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..-0.3V to 18V
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 3.6V
VREF (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . ..-0.3V to VDD
VDRIVE (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to VCC
VCC-VSW (PChannel VBRSS). . . . . . . . . . . . . . . . . . . . . . . . . . ....20V
ISW peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .35A
ICC average. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5A
MOSFET Gate Capacitance . . . . . . . . .....See Max Gate Drive section
All Logic  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to 3.6V
VSENN, VSENP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 3.6V
ESD Rating
Human Body Model (Per JEDEC JESD22-A114) . . . . . . . . . . . . .1.5KV
