ISL6549LOW-EVAL1

EVAL BOARD 1 FOR ISL6549LOW

product image

ISL6549LOW-EVAL1 Picture
See larger image
SeekIC No. : 003822809 Detail

ISL6549LOW-EVAL1: EVAL BOARD 1 FOR ISL6549LOW

ISL6549LOW-EVAL1 Data Sheet

floor Price/Ceiling Price

US $ 87~87 / Piece | Get Latest Price
Part Number:
ISL6549LOW-EVAL1
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • Unit Price
  • $87
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Input Voltage : 75 V Series: *
Manufacturer: Intersil Channels per IC: -
Voltage - Output: - Current - Output: -
Voltage - Input: - Regulator Type: -
Operating Temperature: - Board Type: -
Supplied Contents: -

Description

Voltage - Output: -
Current - Output: -
Voltage - Input: -
Operating Temperature: -
Regulator Type: -
Series: *
Channels per IC: -
Board Type: -
Supplied Contents: -
Utilized IC / Part: -
Manufacturer: Intersil


Features:

• Single 12V bias supply (no 5V supply is required)
• Provides two regulated voltages
- One synchronous rectified buck PWM controller
- One linear controller
• Both controllers drive low cost N-Channel MOSFETs
• Small converter size
- Adjustable frequency 150kHz to 1MHz
- Small external component count
• Excellent output voltage regulation
- Both outputs: ±1% over temperature
• 12V down conversion
• PWM and linear output voltage range: down to 0.8V
• Simple single-loop voltage-mode PWM control design
• Fast PWM converter transient response
- High-bandwidth error amplifier
• Undervoltage fault monitoring on both outputs
• Pb-free plus anneal available (RoHS compliant)


Application

• Processor and memory supplies
• ASIC power supplies
• Embedded processor and I/O supplies
• DSP supplies

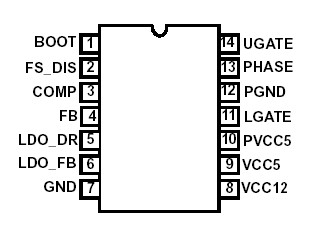

Pinout

Connection Diagram


Specifications

VCC12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .GND - 0.3V to +14V
PVCC5, VCC5 . . . . . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to +7V
VCC5 (if used with external supply). . . . . . . .. . .GND - 0.3V to +6V
BOOT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to +27V
PHASE. . . . . . . . . . . . . . . . . . . . . . .. . VBOOT - 7V to VBOOT + 0.3V
VBOOT - VPHASE. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .+7V
UGATE. . . . . . . . . . . . . . . . . . . .. . .VPHASE - 0.3V to VBOOT + 0.3V
LGATE . . . . . . . . . . . . . . . . . . . . . . .. . GND - 0.3V to PVCC5 + 0.3V
LDO_DR . . . . . . . . . . . . . . . . . . . . ... . GND - 0.3V to VCC12 + 0.3V
FB, LDO_FB, COMP, FS_DIS . . . . . ...... . GND - 0.3V to VCC5 + 0.3V
ESD Classification
Human Body Model (Per JESD22-A114C) . . . . . . . . . ... . . . .Class 2
Machine Model (Per EIA/JESD22-A115-A) . . . . . . . . . . ... . . .Class B
Charge Device Model (Per JESD22-C101C). . . . . . . . . ... . . Class IV


Description

The ISL6549 provides the power control and protection for two output voltages in high-performance applications. The dual-output controller drives two N-Channel MOSFETs in a synchronous rectified buck converter topology and one N-Channel MOSFET in a linear configuration. The controller is ideal for applications where regulation of both the processing unit and memory supplies is required.

The synchronous rectified buck converter incorporates simple, single feedback loop, voltage-mode control with fast transient response. Both the switching regulator and linear regulator provide a maximum static regulation tolerance of ±1% over line, load, and temperature ranges. Each output is user-adjustable by means of external resistors.

An integrated soft-start feature brings both supplies into regulation in a controlled manner. Each output is monitored via the FB pins for undervoltage events. If either output drops below 75% of the nominal output level, both converters are shut off and go into retry mode.

The ISL6549 is available in a 14 Ld SOIC package, 16 Ld QSOP, or 16 Ld 4x4 QFN packages.
