Number of Outputs: 2
Buck: Yes
Inverting: No
Doubler: No
Divider: No
Cuk: No
Isolated: No
Packaging: Tube
PWM Type: Controller
Boost: No
Flyback: No
Duty Cycle: -
Frequency - Max: 600kHz

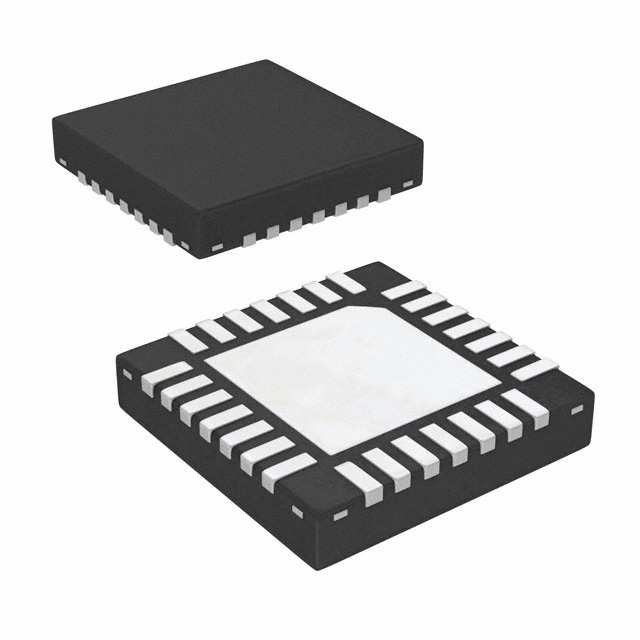

Package / Case: 28-WFQFN Exposed Pad
Operating Temperature: -10°C ~ 100°C
Manufacturer: Intersil
Series: Robust Ripple Regulator™ (R³)
Voltage - Supply: 3.3 V ~ 25 V
DescriptionThe ISL6228HRTZ belongs to ISL6228 family, which is a dual channel synchronous-buck PWM controller featuring Intersil's Robust Ripple Regulator (R3) technology that delivers truly superior dynamic response to input voltage and output load transients. Integrated MOSFET drivers and bootstrap diodes result in fewer components and smaller implementation area.Intersil's R3 technology combines the best features of fixed-frequency and hysteretic PWMs while eliminating many of their shortcomings. R3 technology employs an innovative modulator that synthesizes an AC ripple voltage signal VR, analogous to the output inductor ripple current. The AC signal VR enters a window comparator where the lower threshold is the error amplifier output VCOMP, and the upper threshold is a programmable voltage reference VW, resulting in generation of the PWM signal. The voltage reference VW sets the steady-state PWM frequency. Both edges of the PWM can be modulated in response to input voltage transients and output load transients, much faster than conventional fixed-frequency PWM controllers. Unlike a conventional hysteretic converter, each channel of the ISL6228HRTZ has an error amplifier that provides ±1% voltage regulation at the FB pin.The ISL6228HRTZ has a 1.5ms digital soft-start and can be started into a pre-biased output voltage. A resistor divider is used to program the output voltage setpoint. The ISL6228HRTZ operates in continuous-conduction-mode (CCM) in heavy load, and in diode-emulation-mode (DEM) in light load to improve light-load efficiency. In CCM, the controller always operates as a synchronous rectifier. In DEM, the low-side MOSFET is permitted to stay off, blocking negative current flow into the low-side MOSFET from the output inductor.
The features of ISL6228HRTZ can be summarized as (1)high performance R3 technology; (2)fast transient response; (3)±1% regulation accuracy: -40°C to +100°C; (4)individual power stage input rail for each channel; (5)wide input voltage range: +3.3V to +25V; (6)output voltage range: +0.6V to +5V; (7)diode emulation mode for increased light load efficiency; (8)programmable PWM frequency: 200kHz to 600kHz; (9)pre-biased output start-up capability; (10)integrated MOSFET drivers and bootstrap diode; (11)internal digital soft-start; (12)power good monitor; (13)fault protection: undervoltage protection; soft crowbar overvoltage protection; inductor DCR overcurrent protection; over-temperature protection; fault identification by PGOOD pull-down resistance; (14)Pb-free (RoHS compliant).
The maximum absolute ratings of ISL6228HRTZ are (1)VIN1,2 to GND : -0.3V to +28V; (2)VCC, PGOOD1,2 to GND: -0.3V to +7.0V; (3)PVCC to GND: -0.3V to +7.0V; (4)EN1,2: -0.3V to GND, VCC +3.3V; (5)VO1,2, FB1,2, FSET1,2:-0.3V to GND, VCC +0.3V; (6)PHASE1,2 to GND: (DC) -0.3V to +28V (<100ns pulse width, 10J): -5.0V; (7)BOOT1,2 to GND:-0.3V to +33V; (8)BOOT1,2 to PHASE1,2 :-0.3V to +7V; (9)UGATE1,2 :(DC) -0.3V to PHASE1,2, BOOT1,2 +0.3V(<200ns pulse width, 20J): -4.0V; (10)LGATE1,2: (DC) -0.3V to GND, PVCC +0.3V(<100ns pulse width, 4J): -2.0V; (11)junction temperature range:-55°C to +150°C; (12)operating temperature range :-40°C to +100°C; (13)storage temperature:-65°C to +150°C; (14)ambient temperature range:-10°C to +100°C; (15)supply voltage (VIN to GND):3.3V to 25V; (16)VCC to GND:5V ±5%; (17)PVCC to GND: 5V ±5%(CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and result in failures not covered by warranty.).
Parameters: | Technical/Catalog Information | ISL6228HRTZ |
| Vendor | Intersil |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 2 |
| Voltage - Input | 3.3 ~ 25 V |
| Voltage - Output | 0.6 ~ 5 V |
| Current - Output | - |
| Power - Output | - |
| Package / Case | 28-TQFN |
| Packaging | Tube |
| Internal Switch(s) | No |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -10°C ~ 100°C |
| Frequency - Switching | 200kHz ~ 600kHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ISL6228HRTZ
