ISL6211

Features: • High Efficiency Over Wide Load Range• Loss-Less Current-Sense Scheme - Uses MOSFET's RDS(ON) - Optional Current-Sense Resistor for Higher Tolerance Overcurrent Protection• Powerful Gate Drivers with Adaptive Dead Time• Summing Current-Mode Control and On-Chip Ac...

product image

ISL6211 Picture
See larger image
SeekIC No. : 004380131 Detail

ISL6211: Features: • High Efficiency Over Wide Load Range• Loss-Less Current-Sense Scheme - Uses MOSFET's RDS(ON) - Optional Current-Sense Resistor for Higher Tolerance Overcurrent ProtectionR...

ISL6211 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL6211
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Efficiency Over Wide Load Range
• Loss-Less Current-Sense Scheme
   - Uses MOSFET's RDS(ON)
   - Optional Current-Sense Resistor for Higher Tolerance Overcurrent Protection
• Powerful Gate Drivers with Adaptive Dead Time
• Summing Current-Mode Control and On-Chip Active Droop for Optimum Transient Response
• TTL-Compatible 5-Bit Digital Output Voltage Selection
   - Wide Range - 0.6VDC to 1.0VDC in 25mV Steps, and from 1.0VDC to 1.75VDC in 50mV Steps
   - "On-the-Fly" VID code change with customer programmable slew rate
• Alternative Input to Set Output Voltage During Start-up Power Saving Modes
• Selectable Forced Continuous Conduction Mode of Operation
• Power-Good Output Voltage Monitor
• No Negative Core Voltage on Turn-off
• Over-Voltage, Under-Voltage and Over-Current Fault Monitors
• 300/600kHz Selectable Switching Frequency


Application

• Mobile PCs
• Web Tablets
• Internet Appliances


Pinout

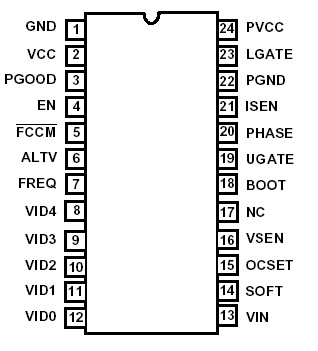

Connection Diagram


Specifications

Bias Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6.5V
Input Voltage, Vin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . +27.0V
PHASE, BOOT, ISEN, UGATE . . . . . . . . . . . . . . . GND-0.3V to +33.0V
BOOT with respect to PHASE . . . . . . . . . . . . . . . . . . . . . . . . . +6.5V
All Other Pins. . . . . . . . . . . . . . . . . . . . . .. GND - 0.3V to VCC + 0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 1
