Product Details

Description



Features:

• VB Programmable Overcurrent Protection Regulation Level for 25W and 50W Ports
• Internal Charge Pump Allows the Use of an N-Channel MOSFET for VB Control
• VB Adjustable Turn-On Ramp
• Soft Start Overcurrent Protection During Turn-On
• Two Levels of VB Overcurrent Detection and Protection
• VA and VB Undervoltage Lock-Outs
• 0.125 Integrated Power N-Channel MOSFET VA Switch
• Accurate VA Current Sensing and Limiting (1A)
• Timed Current Regulation Period (VB Optional)
• VA Controlled Turn-On Ramp Time
• 1s Response Time to VB Secondary Rail Dead Short
• Pb-free available




Application

• InfiniBand VB and VA Voltage Control
• -48V and 5V Telecom




Pinout

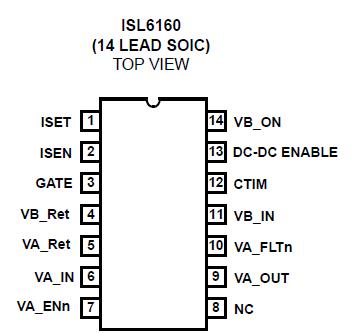

Connection Diagram




Specifications

VB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +17.0V
GATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . -0.3V to VB+8V
ISEN, PGOOD, VB_On, ISET . . . . . . . . . . . .... . . ... -0.3V to VB+ 0.3V
VA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0V
VA_ENn, VA_FLTn. . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.3V to 6V
VA_OUT. . . . . . . . . . . . . . . . . . . . . . . . . . ... . . GND-0.3V to VA+0.3V
VA_Output Current . . . . . . . . . . . . . . . . . . . .Short Circuit Protected
ESD Classification . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . 3kV (HBM




Description

The ISL6160 is designed to address the unique power requirements of the InfiniBand (IB) industry initiative providing independent power control of both the VB(bulk) (+12V) and the VA(auxiliary) (+5V) power rails for a single port. This device can be implemented in both IB Class I (non isolated) and Class II (isolated) Power Topology applications.

The ISL6160, along with an N-Channel power MOSFET and a minimal number of passive components provides soft starting ramps of both the VB and VA voltages for an IB module. It also provides accurate and consistent current regulated outputs for a determined period of time before latch-off in the presence of overcurrent (OC) conditions.

In addition the ISL6160 provides the enable signal to the on module DC-DC converter either upon module insertion to chassis or from a wake event request.

See Figure 1 for typical application usage.
