ISL59885

Features:

• NTSC, PAL, SECAM, HDTV, non-standard video sync separation
• Fixed 70mV slicing of video input levels from 0.5V_P-P to 2V_P-P
• Single 3V to 5V supply
• Composite sync output
• Vertical output
• Horizontal output
• HDTV detection
• 81% to 90% Hsync blanking window (R5218)
• Macrovision compatible
• Available in 8 Ld SO package
• Pb-Free plus anneal available (RoHS compliant)




Application

• High definition video equipment

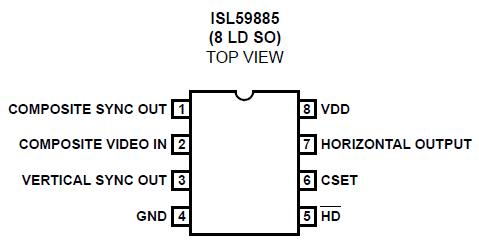

Pinout






Specifications

V_DD Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7V
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . . .............. . -0.5V to V_CC +0.5V
Operating Ambient Temperature Range . . . . ........... . . . . .-40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . . .... . . . . . . . . +150°C
Storage Temperature . . . . . . . . . . . . . . . . . . . ........... . . . .-65°C to +150°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . .... . . . . . . . . . . .400mW




Description

The ISL59885 video sync separator extracts sync timing information from both standard and non-standard video inputs in the presence of Macrovision pulses. The ISL59885 provides horizontal, vertical, and composite sync outputs as well as SD/HDTV detection. An auto input frequency detect feature automatically adapts to a wide range of video standards (it does not need a different RSET resistor for different frequencies). The vertical sync pulse is output on the rising edge of the first vertical serration following the vertical pre-equalizing string. For non-standard vertical inputs, a default vertical pulse is output when the vertical signal stays low for longer than the vertical sync default delay time. The horizontal output gives horizontal timing with pre/post equalizing pulses. Fixed 70mV sync tip slicing provides sync edge detection when the video input level is between 0.5VP-P and 2VP-P. The ISL59885 is available in an 8 Ld SOIC package and is specified for operation over the full -40C to +85C temperature range.
