ISL59448

Features:

• Triple 2:1 (ISL59448) and 4:1 (ISL59446) multiplexers for RGB
• Internally set gain-of-2
• High speed three-state outputs (HIZ)
• Power-down mode (ENABLE)
• Latch enable (ISL59448)
• ±5V operation
• ±1600 V/s slew rate
• 500MHz bandwidth
• Supply current 16mA/ch (ISL59446) and 11mA/ch (ISL59448)
• Pb-free plus anneal available (RoHS compliant)




Application

• HDTV/DTV analog inputs
• Video projectors
• Computer monitors
• Set-top boxes
• Security video
• Broadcast video equipment

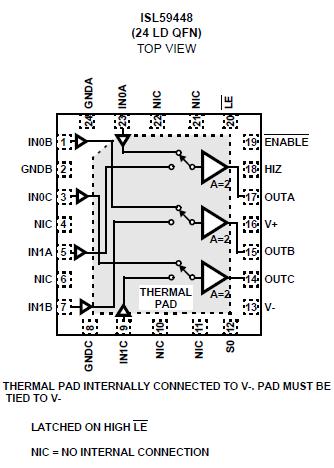

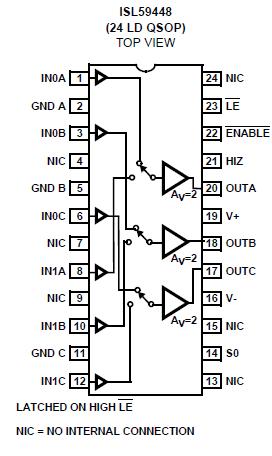

Pinout

Specifications

Supply Voltage (V+ to V-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . ............ . . . . . V- -0.5V, V+ +0.5V
Supply Turn-on Slew Rate . . . . . . . . . . . . . . . . . .... . . . . . . . . . 1V/s
Digital & Analog Input Current (Note 1) . . . . . . . ... . . . . . . . . . . 50mA
Output Current (Continuous) . . . . . . . . . . . . . . . ... . . . . . . . . . . 50mA
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7).... . . .2500V
Machine Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . .300V
Storage Temperature Range . . . . . . . . . . . . . . . . ........... .-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . .......... . . .-40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . ........... . .-40°C to +125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . ........ . . . . . . See Curves




Description

The ISL59446 (4:1) and ISL59448 (2:1) are fixed gain of 2 mux amps featuring high slew rates and excellent bandwidth for video switching. These devices feature a three-state output (HIZ) that enables the outputs of multiple devices to be wired together. A power-down mode (ENABLE) is included to turn off un-needed circuitry in power sensitive applications. The ENABLE pin, when pulled high, sets the ISL59446 and ISL59448 into standby power mode - consuming just 18mW. An added feature in the ISL59448 is a latch enable function (LE) that allows independent logic control using a common logic bus.
