Features:

• Triple 2:1 and 4:1 Multiplexers for RGB
• Internally Set Gain-of-1
• High Speed Three-state Outputs (HIZ)
• Power-down Mode (EN)
• Latch Enable (ISL59424)
• ±5V Operation
• ±1200 V/µsec Slew Rate
• 1GHz Bandwidth
• Latched Select Pin (ISL59424)
• Pb-Free Plus Anneal Available (RoHS Compliant)




Application

• HDTV/DTV Analog Inputs
• Video Projectors
• Computer Monitors
• Set-top Boxes
• Security Video
• Broadcast Video Equipment




Pinout

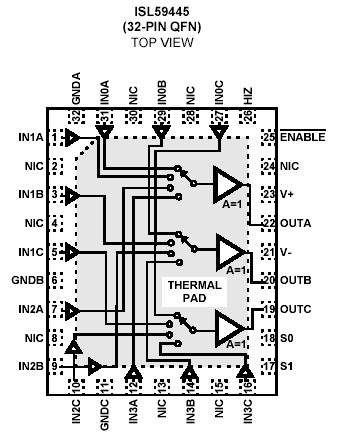

Connection Diagram






Specifications

Supply Voltage (V+ to V-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .V- -0.5V, V+ +0.5V
Supply Turn-on Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . ... 1V/µs
Digital & Analog Input Current (Note 1) . . . . . . . . . . . . . . . .. . 50mA
Output Current (Continuous) . . . . . . . . . . . . . . . . . . . . . . . .. . 50mA
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7). ..... . .2500V
Machine Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... .300V
Storage Temperature Range . . . . . . . . . . . . . . . . . .-65 to +150
Ambient Operating Temperature . . . . . . . . . . . . . . . .-40 to +85
Operating Junction Temperature . . . . . . . . . . . . . . .-40 to +125
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves




Description

The ISL59424 and ISL59445 are 1GHz bandwidth multiplexing amplifiers designed primarily for video input switching. These MUX-amps exhibit a fixed gain of 1 and also feature a high speed three-state to enable the output of multiple devices to be wired together. All logic inputs have pull-downs to ground and may be left floating. The EN pin, when pulled high, sets the ISL59424 and ISL59445 in to low current mode - consuming just 15mW. An added feature in the ISL59424 is a latch enable function (LE) that allows independent logic control using a common logic bus. When LE is high the last logic state is preserved.
