Product Details

Description



Features:

• 411MHz (-3dB) Bandwidth (AV = 1, VOUT = 100mVP-P)
• 200MHz (-3dB) Bandwidth (AV = 2, VOUT = 2VP-P)
• Slew Rate (AV = 1, RL = 500, VOUT = 4V) . . . . .1053V/s
• Slew Rate (AV = 2, RL = 500, VOUT = 5V) . . . . .1470V/s
• Adjustable Gain
• High Speed Three-state Output (HIZ)
• Low Current Power-down. . . . . . . . . . . . . . . . . . . . . .5mW
• Pb-Free Plus Anneal Available (RoHS Compliant)




Application

• HDTV/DTV Analog Inputs
• Video Projectors
• Computer Monitors
• Set-top Boxes
• Security Video
• Broadcast Video Equipment




Pinout

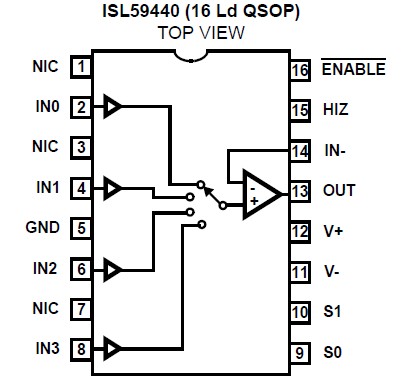

Connection Diagram




Specifications

Supply Voltage (V+ to V-) . . . . . . . . . . . . . . . . . . . . . . . . . . . .11V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .V- -0.5V, V+ +0.5V
Supply Turn-on Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . 1V/s
IN- Input Current (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . .5mA
Digital & Analog Input Current (Note 1) . . . . . . . . . . . . . . . . . 50mA
Output Current (Continuous) . . . . . . . . . . . . . . . . . . . . . . . . .50mA
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7). . . .2.5kV
Machine Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300V
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
Ambient Operating Temperature . . . . . . . . . . . . . . . .-40 to +85
Operating Junction Temperature. . . . . . . . . . . . . . . -40 to +125
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
JA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTE:
1. If an input signal is applied before the supplies are powered up, the input current must be limited to these maximum values.




Description

The ISL59440 is a 400MHz bandwidth 4:1 multiplexing amplifier designed primarily for video switching. This Muxamp has user-settable gain and also features a high speed three-state function to enable the output of multiple devices to be wired together. All logic inputs have pull-downs to ground and may be left floating. The ENABLE pin, when pulled high, sets the ISL59440 to the low current power-down mode for power sensitive applications - consuming just 5mW.
