ISL5861

Features:

• Speed Grades . . . . . . . . . . . . . . . . 130M and 210+MSPS
• Low Power . . . . . 103mW with 20mA Output at 130MSPS
• Adjustable Full Scale Output Current. . . . . 2mA to 20mA
• +3.3V Power Supply
• 3V LVCMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range (73dBc to Nyquist, fS = 130MSPS, f_OUT = 10MHz)
• UMTS Adjacent Channel Power =70dB at 19.2MHz
• EDGE/GSM SFDR = 90dBc at 11MHz in 20MHz Window
• Pin compatible, 3.3V, Lower Power Replacement For The AD9752 and HI5860




Application

• Cellular Infrastructure - Single or Multi-Carrier: IS-136, IS- 95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
• BWA Infrastructure
• Medical/Test Instrumentation
• Wireless Communication Systems
• High Resolution Imaging Systems
• Arbitrary Waveform Generators

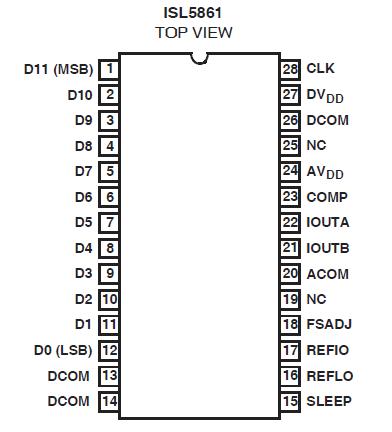

Pinout






Specifications

Digital Supply Voltage DVDD to DCOM . . . . . . . . . . . . .. . . . . +3.6V
Analog Supply Voltage AVDD to ACOM . . . . . . . . . . . . . . . . . +3.6V
Grounds, ACOM TO DCOM . . . . . . . . . . . . . . . . . . ... -0.3V to +0.3V
Digital Input Voltages (D9-D0, CLK, SLEEP). . . . . . .. . DV_DD + 0.3V
Reference Input Voltage Range. . . . . . . . . . . . . . . .. . AV_DD + 0.3V
Analog Output Current (I_OUT) . . . . . . . . . . . . . . . . . . . . . . . 24mA




Description

The ISL5861 is a 12-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high speed, low power, D/A (digital to analog) converter, designed specifically for use in high performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols. This device complements the ISL5x61 family of high speed converters, which include 10, 12, and 14-bit devices.
