ISL54400

Features:

• Low Distortion Negative Signal Capability
• Detection of V_BUS Voltage on USB Cable (ISL54400 and ISL54401)
• Generation of V_TERM Voltage for USB D+/D- Pull-up Resistor (ISL54400)
• Low Distortion Headphone Audio Signals
- THD+N at 12mW into 32 Load . . . . . . . . . . . . <0.01%
• Cross-talk (20Hz to 20kHz) . . . . . . . . . . . . . . . . . . -110dB
• 1.8V Logic Compatible (ISL54402)
• Single Supply Operation (V_DD)
- ISL54400 and ISL54401 . . . . . . . . . . . . . . 2.5V to 3.6V
- ISL54402 . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8V to 5.5V
• Available in Ultra-thin QFN and TDFN Packages
• Pb-Free Plus Anneal Available (RoHS Compliant)




Application

• MP3 and other Personal Media Players
• Cellular/Mobile Phones
• PDA's
• USB Switching
• Audio/USB Switching

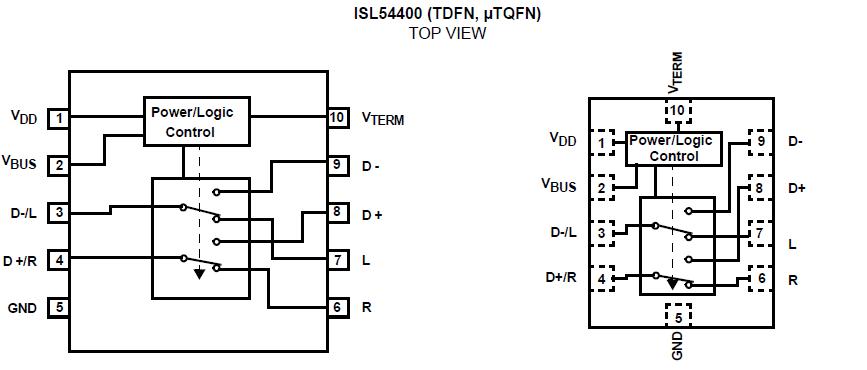

Pinout






Specifications

V_DD to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . -0.3 to 6.0V
V_BUS to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . -0.3 to 6.0V
Input Voltages
NOx, NCx, L, R (Note 2). . . . . . . . . . . . .............. . . - 2V to ((V_DD) + 0.3V)
D+, D- (Note 2). . . . . . . . . . . . . . . . . . . .............. . -2V to ((V_BUS ) + 0.3V)
IN (Note 2) . . . . . . . . . . . . . . . . . . . . . . . ............. . -0.3 to ((V_DD) + 0.3V)
Output Voltages (ISL54400 and ISL54401)
D-/L, D+/R (Note 2) Audio Mode . . . . . .............. . . -2V to ((V_DD) + 0.3V)
D-/L, D+/R (Note 2) USB Mode . . . . . ................. . -2V to ((V_BUS ) + 0.3V)
Output Voltages (ISL54402)
COMx (Note 2) . . . . . . . . . . . . . . . . . . . . ............. . -2V to ((V_DD) + 0.3V)
Continuous Current (L, R, NCx, or COMx) . . . . . . ... . . . . . . ±300mA
Peak Current (L, R, NCx, or COMx)
(Pulsed 1ms, 10% Duty Cycle, Max) . . . . . . . . ... . . . . . . . ±500mA
Continuous Current (D+, D-, NOx). . . . . . . . . . . . . . . . . . . . . ±40mA
Peak Current (D+, D-, NOx)
(Pulsed 1ms, 10% Duty Cycle, Max) . . . . . . ... . . . . . . . . . ±100mA
ESD Rating:
HBM COMx, D-/L, D+/R, V_BUS . . . . . . . . . .. . . . . . . . . . . . . .>4kV
HBM All Other Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>4kV
MM COMx, D-/L, D+/R, V_BUS . . . ... . . . . . . . . . . . . . . . . . . .>500V
MM All Other Pins . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . .>300V
CDM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>1kV




Description

The Intersil ISL54400, ISL54401, ISL54402 dual SPDT (Single Pole/Double Throw) switches combine low distortion audio and accurate USB 2.0 full speed data signal switching in the same low voltage device. When operated with a 2.5V to 3.6V single supply these analog switches allow audio signal swings below-ground, allowing the use of a common USB and audio headphone connector in Personal Media Players and other portable battery powered devices. The ISL54400 and ISL54401 incorporate circuitry for detection of the USB VBUS voltage, which is used to switch between the audio and USB signal source in the portable device. In addition, the ISL54400 includes circuitry for generation of a VTERM voltage of 3.3V for use with USB speed setting pull-up resistor. The ISL54400, ISL54401, ISL54402 are available in 10 Ld 3mm x 3mm TDFN and 10 Ld tiny 2.1mm x 1.6mm ultra-thin TQFN packages. They operate over a temperature range of -40 to +85C.
