ISL43741

Features:

• Fully Specified at 3.3V, 5V, ±5V, and 12V Supplies for 10% Tolerances
• ON Resistance (R_ON) Max, V_S = ±4.5V. . . . . . . . . . . 50
• ON Resistance (R_ON) Max, V_S = +3V . . . . . . . . . . . 155
• R_ON Matching Between Channels, V_S = ±5V. . . . . . . . . <2
• Low Charge Injection, V_S = ±5V . . . . . . . . . . . . . 1pC (Max)
• Single Supply Operation. . . . . . . . . . . . . . . . . . . +2V to +12V
• Dual Supply Operation . . . . . . . . . . . . . . . . . . . . . ±2V to ±6V
• Fast Switching Action (V_S = +5V)
- t_ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38ns
- t_OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19ns
• Guaranteed Max Off-leakage . . . . . . . . . . . . . . . . . . .2.5nA
• Guaranteed Break-Before-Make
• TTL, CMOS Compatible
• Pb-Free Plus Anneal Available (RoHS Compliant)




Application

• Battery Powered, Handheld, and Portable Equipment
• Communications Systems
- Radios
- Telecom Infrastructure
- ADSL, VDSL Modems
• Test Equipment
- Medical Ultrasound
- Magnetic Resonance Image
- CT and PET Scanners (MRI)
- ATE
- Electrocardiograph
• Audio and Video Signal Routing
• Various Circuits
- +3V/+5V DACs and ADCs
- Sample and Hold Circuits
- Operational Amplifier Gain Switching Networks
- High Frequency Analog Switching
- High Speed Multiplexing
- Integrator Reset Circuits

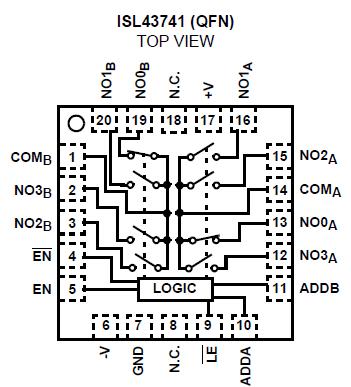

Pinout

Specifications

V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... . . . . . . . . -0.3 to15V
V+ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . .... . . . . . . . . -0.3 to15V
V- to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . . . . . -15 to 0.3V
Input Voltages
LE, EN, EN , NO, NC, ADD (Note 1) . . . .............. . . -0.3 to ((V+) + 0.3V)
Output Voltages
COM (Note 1) . . . . . . . . . . . . . . . . . . . . ............ . . . -0.3 to ((V+) + 0.3V)
Continuous Current (Any Terminal) . . . . . . . . . . . . . . . . . . . . ±30mA
Peak Current NO, NC, or COM
(Pulsed 1ms, 10% Duty Cycle, Max) . . . . . . . ... . . . . . . . . ±100mA
ESD Rating
HBM ( Per Mil-STD-883, Method 3015.7) . . . . ... . . . . . . . . >2.5kV




Description

The Intersil ISL43681 and ISL43741 devices are precision, bidirectional, analog switches configured as an 8 channel and a differential 4 channel multiplexer/demultiplexer. They are designed to operate from a single +2V to +12V supply or from a 2V to 6V supplies. The devices have an inhibit and inhibit bar pin to simultaneously open all signal paths. The devices also have a latch bar pin to lock in the last switch address. ON resistance of 39 with a 5V supply and 125 with a +3.3V supply. Each switch can handle rail to rail analog signals. The off-leakage current is only 0.1nA at +25oC or 2.5nA at +85C. All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS logic compatibility when using a single 3.3V or +5V supply or dual 5V supplies. The ISL43681 is a single 8 to 1 multiplexer device and the ISL43741 is a diff 4 to 1 multiplexer device.
