Product Details

Description

Features:

• Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.6V
• Output Power . . . . . . . . . . . . . . . . . . . . . . . . .21dBm (Typ)
• Power Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28dB (Typ)
• Detector Linear Input Power Range . . . . . . . . . . . . . .15dB
• Detector Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . .±1dB

Application

• Systems Targeting IEEE802.11a/b/g WLANs
• Wireless Local Area Networks (WLAN)
• PCMCIA Wireless Transceivers
• ISM Systems Including Automatic Level Control (ALC)

Pinout

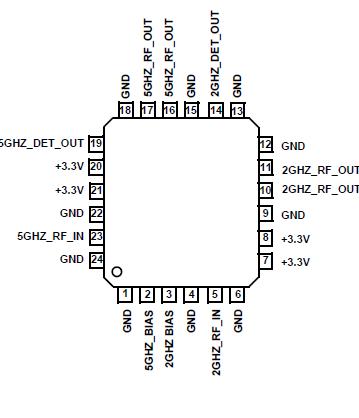

Connection Diagram

Description

The ISL3990 is a Dual Band monolithic GaAs Power Amplifier designed to operate in both the ISM and U-NII Bands. It features two low voltage single supply stages which cascaded deliver 21dBm (Typ) output power for ISM, and three stages which deliver 16 dBm (Typ) for U-NII OFDM applications.

In addition, the device includes a Dual Band detector which is accurate over a 15dB dynamic range within (±)1dB, which can be used to implement an accurate ALC function.

The ISL3990 is housed in a 24 lead QFN package.
