ISL3984

Features: • Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.6V• Output Power . . . . . . . . . . .18dBm (Typ) at ACPR, DSSS, 1st Side Lobe < -30dBc, 2nd Side Lobe < -50dBc• Power Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30dB (Typ...

product image

ISL3984 Picture
See larger image
SeekIC No. : 004379769 Detail

ISL3984: Features: • Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.6V• Output Power . . . . . . . . . . .18dBm (Typ) at ACPR, DSSS, 1st Side Lobe < -30dBc, 2nd Side...

ISL3984 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL3984
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.6V
• Output Power . . . . . . . . . . .18dBm (Typ) at ACPR, DSSS, 1st Side Lobe < -30dBc, 2nd Side Lobe < -50dBc
• Power Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30dB (Typ)
• Detector Linear Input Power Range . . . . . . . . . . . . . .15dB
• Detector Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±1dB


Application

• IEEE802.11 1, 2 or 5.5Mbps Standard
• Systems Targeting IEEE802.11b, 11Mbps Standard
• Wireless Local Area Networks (WLAN)
• PCMCIA Wireless Transceivers
• ISM Systems Including Automatic Level Control (ALC)
• TDMA Packet Protocol Radios


Pinout

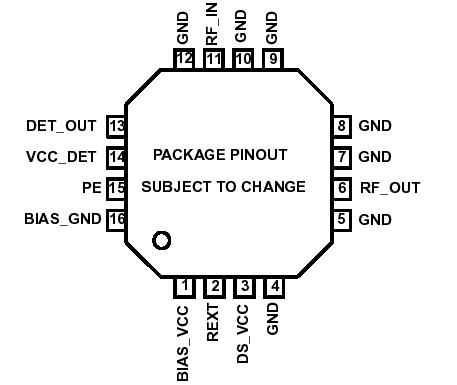

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .4V
Voltage on Any Other Pin. . . . . . . . . . .. -0.3 to VCC +0.3V
VCC to VCC Decouple . . . . . . . . . . . . . . . . . . -0.3 to +0.3V
Any GND to GND. . . . . . . . . . . . . . . . . . . . . . -0.3 to +0.3V


Description

The ISL3984 is a 2.4GHz monolithic SiGe Power Amplifier designed to operate in the ISM Band. It features two low voltage single supply stages.

Cascaded, they deliver 18dBm (Typ) output power for the typical DSSS signal (ACPR, 1st Side Lobe < -30dBc, 2nd Side Lobe < -50dBc).

In addition, the device includes a 2.4GHz detector which is accurate over a 15dB dynamic range within (±)1dB. Therefore, an accurate ALC function can be implemented. The ISL3984 is housed in a 16 lead MLFP package well suited for PCMCIA board applications.
