Product Details

Description



Features:

• Frequency of Operation, RXin/TXout . . . .300 to 1200MHz
• Frequency of Operation, TXin/RXout . . . . . . .10 to 30MHz
• Receive Voltage Gain . . . . . . . . . . . . . . . . . . . . . . . .78dB
• Wide Dynamic AGC Control. . . . . . . . . . . . . . . . . . . .76dB
• Transmit Power Control Range . . . . . . . . . . . . . . . . .40dB
• Integrated Antialiasing and Preshaping Filters
• Integrates a VCO and a Synthesizer PLL
• Low Supply Operation . . . . . . . . . . . . . . . . . . . . . 2.7-3.3V


Application

• High Data Rate Wireless LAN IEEE 802.11a Systems
• PCI, miniPCI and PCMCIA Wireless LAN Adapters
• Spread Spectrum WLAN RF Modems
• TDMA or CSMA Packet Protocol Radios
• PCN/Wireless PBX/Wireless Local Loop


Pinout

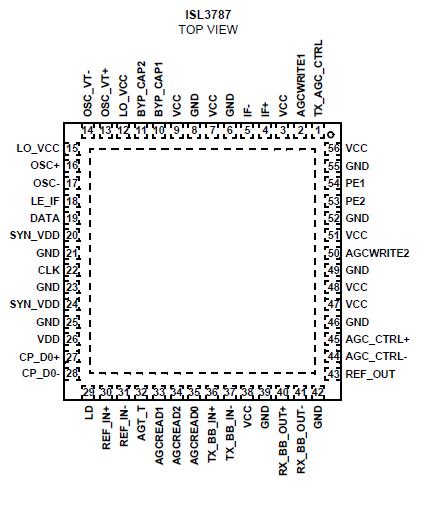

Connection Diagram


Description

The ISL3787 is a highly integrated, UHF2, Half Duplex IF Converter, PLL Synthesizer and VCO IC device. It is part of the Intersil PRISM® V, 5GHz radio chipset.

The ISL3787directly interfaces with the ISL3877 Wireless LAN Integrated Media Access Controller with Baseband Processor. Adding Intersil's ISL3687 5GHz RF/IF Converter with Integrated Synthesizer allows operation with a single SAW filter for both Transmit and Receive IF to Baseband functions. The addition of a power amplifier completes a Wireless LAN radio application for the 802.11a 5GHz standard.

The ISL3787 combines all the necessary IF to Baseband functions into a QFN Plastic Package suitable for miniPCI and PCMCIA applications.
