ISL3687

Features: • RF Input Range . . . . . . . . . . . . . . . . . . . . 5.15 to 5.35GHz• IF Output . . . . . . . . . . . . . . . . . . . . . . . . . .750 to 870MHz• Receive Cascaded Noise Figure . . . . . . . . . . . . . . . 5.4dB• Selectable LNA Gain Step . . . . . . . . . . . ...

product image

ISL3687 Picture
See larger image
SeekIC No. : 004379736 Detail

ISL3687: Features: • RF Input Range . . . . . . . . . . . . . . . . . . . . 5.15 to 5.35GHz• IF Output . . . . . . . . . . . . . . . . . . . . . . . . . .750 to 870MHz• Receive Cascaded Noi...

ISL3687 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL3687
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• RF Input Range . . . . . . . . . . . . . . . . . . . . 5.15 to 5.35GHz
• IF Output . . . . . . . . . . . . . . . . . . . . . . . . . .750 to 870MHz
• Receive Cascaded Noise Figure . . . . . . . . . . . . . . . 5.4dB
• Selectable LNA Gain Step . . . . . . . . . . . . . . . . . . . . .22dB
• Transmit Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 dBm
• Integrates a VCO and a Synthesizer PLL
• Internally Matched
• Integrated Image and SSB TX filters
• Multiplexed Port for Single IF Filter application
• Low Supply Operation . . . . . . . . . . . . . . . . . . . . . 2.7-3.3V


Application

• High Data Rate Wireless LAN Systems Targeting the IEEE 802.11a Standard
• PCI, miniPCI and PCMCIA Wireless LAN Adapters
• Spread Spectrum WLAN RF Modems
• TDMA or CSMA Packet Protocol Radios
• PCN/ Wireless PBX/Wireless Local Loop




Pinout

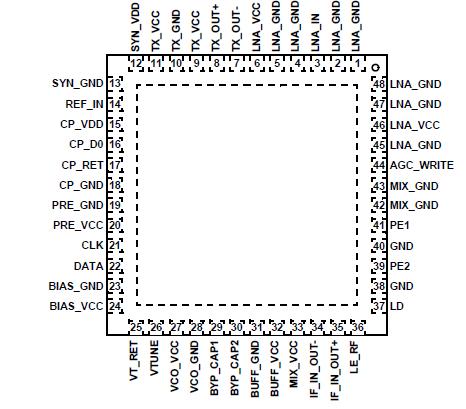

Connection Diagram


Description

The ISL3687 is a highly integrated, SiGe, Half Duplex RF/IF Converter with integrated PLL Synthesizer and VCO IC device. It is part of the Intersil PRISM® V, 5GHz radio chipset.

The ISL3687 directly interfaces with Intersil's ISL3787 1.2GHz IF Converter with AGC and Synthesizer to allow operation with a single SAW filter for both Transmit and Receive functions. The addition of the Intersil's ISL3877 Wireless LAN Media Access Controller and Baseband Processor completes a Wireless LAN radio application for the 802.11a 5GHz standard.

The ISL3687 combines all the necessary RF front end functions into a QFN Package suitable for miniPCI and PCMCIA applications..
