ISL3680

Features: • Highly integrated Dual Band RF to baseband solution• Frequency of operation . . . . . . . . . . . . . . . . 2.4 to 2.5GHz• Low supply operation . . . . . . . . . . . . . . . . . . . 2.7 to 3.3V• Noise figure . . . . . . . . . . . . . . . . . . . . . . . . . . . ...

product image

ISL3680 Picture
See larger image
SeekIC No. : 004379734 Detail

ISL3680: Features: • Highly integrated Dual Band RF to baseband solution• Frequency of operation . . . . . . . . . . . . . . . . 2.4 to 2.5GHz• Low supply operation . . . . . . . . . . . . ...

ISL3680 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL3680
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Highly integrated Dual Band RF to baseband solution
• Frequency of operation . . . . . . . . . . . . . . . . 2.4 to 2.5GHz
• Low supply operation . . . . . . . . . . . . . . . . . . .  2.7 to 3.3V
• Noise figure . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 5.4dB
• TX OFDM Output Power . . . . . . . . . . . . . . . . . . .. ... .-5dBm
• TX I/Q MTPR, PAR=12 . . . . . . . . . . . . . . . . . . . . ...... . -45dB
• RX Voltage gain . . . . . . . . . . . . . . . . . . . . . . . ... . 0 to 74dB
• RX I/Q MTPR, PAR=12, High Gain . . . . . . . . . . . ....... . -35dB
• TX/RX switching speed . . . . . . . . . . . . . . . . . . . . .... . .<1S
• Direct simple interface to ISL3880


Application

• PC card wireless LAN adapters
• High data rate wireless LAN systems targeting
   IEEE802.11 b/g standards
• Spread spectrum Dual Band WLAN RF modems
• TDMA or CSMA packet protocol Dual Band radios
• PCI wireless LAN cards
• ISA, ISA PnP WLAN cards


Pinout

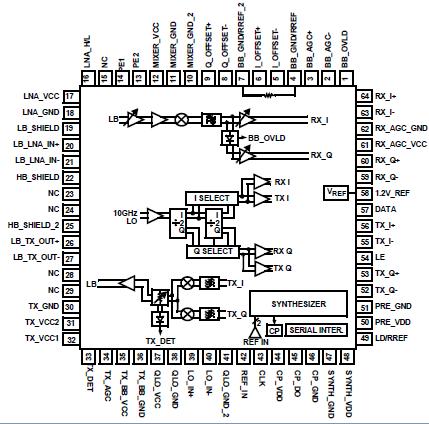

Connection Diagram


Description

The Intersil ISL3680 is a highly integrated UHF2 process, direct conversion transceiver and is part of a 2.4GHz, IEEE802.11b/g compliant radio chipset. The ISL3680 directly interfaces with Intersil's ISL3880 Medium Access Controller with Integrated Baseband processor. The addition of Intersil's ISL3980 power amplifier and ISL3090 10GHz VCO completes a WLAN transceiver application.
