ISL3092

Features: • Single Supply . . . . . . . .2.7V to 3.0V• Frequency . . . . . 9648 to 11670MHz typical• Fully integrated / no external varactors or resonators required• Isolation output buffer/reduced load pulling• Differential design/reduced spurs• Digitally contr...

product image

ISL3092 Picture
See larger image
SeekIC No. : 004379679 Detail

ISL3092: Features: • Single Supply . . . . . . . .2.7V to 3.0V• Frequency . . . . . 9648 to 11670MHz typical• Fully integrated / no external varactors or resonators required• Isolatio...

ISL3092 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL3092
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single Supply . . . . . . . .2.7V to 3.0V
• Frequency . . . . .  9648 to 11670MHz typical
• Fully integrated / no external varactors or resonators required
• Isolation output buffer/reduced load pulling
• Differential design/reduced spurs
• Digitally controlled power down mode


Application

• High Data Rate Wireless LAN Systems Targeting the IEEE 802.11a and 802.11b Standards
• Only required VCO function for Intersil chip set
• WLAN applications
• PCMCIA wireless transceivers
• TDMA packet protocol radios


Pinout

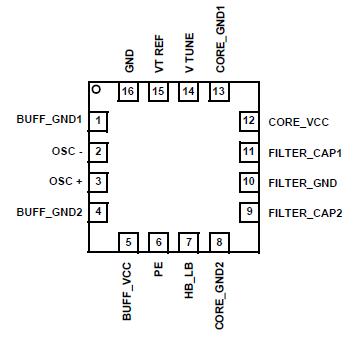

Connection Diagram


Description

The ISL3092 is a 11GHz SiGe monolithic VCO circuit designed to simplify and reduce the cost and size of miniature wireless transceivers.

A fully integrated VCO requiring no external elements such as inductors or varactors greatly simplifies low cost local oscillator synthesized applications. Included in this differential design is a high/low band selection and a low-power standby function.

The ISL3092 directly interfaces with Intersil's 2.4/5GHz dualband ZIF (zero IF) converter (ISL3692). The addition of the Intersil's Wireless LAN Media Access Controller and Baseband Processor (ISL3886) and Intersil's Power Amplifier (ISL3992) completes a worldwide wirelessLAN radio application targeting both the 802.11b/g 2.4GHz and 802.11a 5GHz standard.

The ISL3092 is housed in a 16 lead Quad Flat No Lead Plastic (QFN) Package suitable for Mini-PCI and PCMCIA
