ISL3084

Features: • Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.3V• Frequency . . . . . . . . . . . . . . . . . . . . . . . . . 4.9GHz typical• Fully Integrated/No External Varactors or Resonators Required• Isolation Output Buffer/Reduced Load Pulling&...

product image

ISL3084 Picture
See larger image
SeekIC No. : 004379678 Detail

ISL3084: Features: • Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.3V• Frequency . . . . . . . . . . . . . . . . . . . . . . . . . 4.9GHz typical• Fully Integrat...

ISL3084 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISL3084
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.3V
• Frequency . . . . . . . . . . . . . . . . . . . . . . . . . 4.9GHz typical
• Fully Integrated/No External Varactors or Resonators Required
• Isolation Output Buffer/Reduced Load Pulling
• Differential Design/Reduced Spurs
• Digitally Controlled Power Down Mode
• QFN Package:
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Package Outline
- Near Chip Scale Package footprint, which improves PCB efficiency and has a thinner profile


Application

• Systems Targeting IEEE802.11b, 11Mbps Standard
• Only required VCO function for Intersil PRISM3 chip set
• WLAN Applications.
• PCMCIA Wireless Transceivers
• TDMA Packet Protocol Radios


Pinout

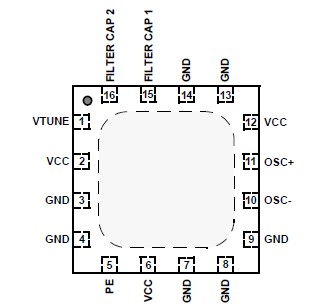

Connection Diagram


Specifications

Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6V
Voltage on Any Other Pin . . . . . . . . . . . . . . . . . .  -0.3 to VCC +0.3V
VCC to VCC Decouple . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to +0.3V
Any GND to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -0.3 to +0.3V


Description

The ISL3084 is a 5GHz SiGe monolithic VCO circuit designed to simplify and reduce the cost and size of miniature wireless transceivers.

A fully integrated VCO requiring no external elements such as inductors and varactors greatly simplifies low cost local oscillator synthesized applications.

Included in this differential design is a low-power standby function and a stable process and temperature biasing operation.

The ISL3084 is housed in a 16 lead QFN package well-suited for PCMCIA and miniPCI board applications.
