ISL24006

Features:

• 14-channel programmable switchable
• 4-channel static
• Fast switch time (< 1s)
• Programmable with 20mV resolution
• Digital supply 3.3V to 5V
• Supply current of 32mA (without load)
• Rail-to-Rail capability
• I²C interface
• Pb-free plus anneal available (RoHS compliant)




Application

• TFT-LCD drive circuits
• Reference voltage generators

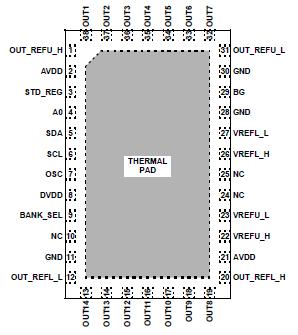

Pinout






Specifications

Supply Voltage between A_VDD and GND . . . . . . . . . . . . . . . .+18V
Supply Voltage between D_VDD and GND lesser of V_S or +7V (max)
Maximum Continuous Output Current . . . . . . . . . . . 20mA/channel
Operating Temperature . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . TBD
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . .. . +125°C
Lead Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . +260°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. The device outputs cannot withstand shortcircuit condition for extended periods of time. To avoid damage, do not exceed absolute maximum rating of 20mA/channel.

Description

The ISL24006 is a 14-channel programmable switchable reference voltage generator with four channels of static gamma drivers integrated, for a complete 18-channel total gamma solution for TFT-LCD displays. The 14-channel programmable switchable configuration allows switching between two gamma curves. The ISL24006 is divided into two banks of seven generators: one designed to cover the range from VREFL_L to VREFL_H; the remaining seven channels covering the range from VREFU_L to VREFU_H. Each bank has its own separate high and low reference inputs, with integrated buffers (four static gamma drivers) to drive the column driver internal DAC resistor string to within 0.2V from the top and bottom rails. An output MUX is used to switch between the two curves in less than 1s. Switching is controlled using an external select pin. ISL24006 includes an I2C interface for programming the offset values. ISL24006 is available in the 38-pin QFN package and is specified for operation over the -40C to +85C temperature range.
