ISD5116

Fully-Integrated Solution
Single-chip voice record/playback solution
Dual storage of digital and analog informationLow Power Consumption
+2.7 to +3.3V (VCC) Supply Voltage
Supports 2.0V and 3.0V interface logic
Operating Current:
ICC Play = 15 mA (typical)
 ICC Rec = 30 mA (typical)
 ICC Feedthrough = 12 mA (typical)
Standby Current:
 ISB = 1A (typical)
Most stages can be individually powered downto minimize power consumptionEnhanced Voice Features
One or two-way conversation record
One or two-way message playback
Voice memo record and playback
Private call screening
In-terminal answering machine
Personalized outgoing message

Private call announce while on call

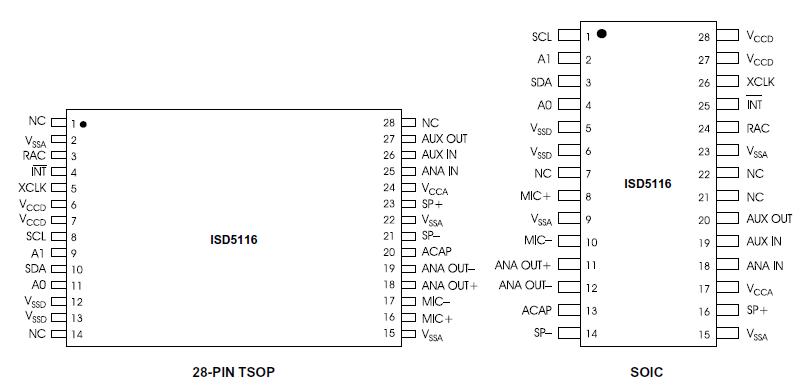

The ISD5116 ChipCorder Product provides highquality, fully integrated, single-chipRecord/Playback solutions for 8- to 16-minutemessaging applications that are ideal for use incellular phones, automotive communications,GPS/navigation systems andother portableproducts. The ISD5116 product is an enhancementof the ISD5000 architecture, providing: 1) the I2Cserial port - address, control and duration selectionare accomplished through an I2C interface tominimize pin count (ONLY two control linesrequired); 2) the capability of the storage array tostore digital, in addition to analog, information.These features allow customers to store phonebook numbers, system configuration parametersand message address pointers for messagemanagement capability.Analog functions

and audio gating have also beenintegrated into the ISD5116 product to allow easyinterface with integrated digital cellular chip sets onthe market. Audio paths have been designed toenable full duplex conversation record, voicememo, answering machine(including outgoingmessage playback) and call screening features.This product enables playback of messages whilethe phoneis in standby, AND both simplex andduplex playback of messages while on a phone call.information from the host chipset 2) a private callannounce while on call can be heard from the hostby giving caller-ID on call waiting information fromthe host chipset.

Like other ChipCorder® products, the ISD5116integrates the sampling clock, anti-aliasing andsmoothing filters, and the multilevel storage arrayon a single-chip. For enhanced voice features, theISD5116 eliminates external circuitry by integratingautomatic gain control (AGC), a poweramplifier/speaker driver, volume control, summingamplifiers, analog switches, and a car kit interface.Input level adjustable amplifiers are also included,providing a flexible interface for multipleapplications.

Recordings are stored in on-chip nonvolatilememory cells, providing zero-power messagestorage. This unique, single-chip solution is madepossible through ISD's patented multilevel storagetechnology. Voice and audio signals are storeddirectly into solid-state memory in their natural,uncompressed form, providing superior qualityvoice and music reproduction.
