IS65LV256AL

Features: • High-speed access time: 20, 45 ns• Automatic power-down when chip is deselected• CMOS low power operation- 17 W (typical) CMOS standby- 50 mW (typical) operating• TTL compatible interface levels• Single 3.3V power supply• Fully static operation: no c...

product image

IS65LV256AL Picture
See larger image
SeekIC No. : 004379300 Detail

IS65LV256AL: Features: • High-speed access time: 20, 45 ns• Automatic power-down when chip is deselected• CMOS low power operation- 17 W (typical) CMOS standby- 50 mW (typical) operating•...

IS65LV256AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS65LV256AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed access time: 20, 45 ns
• Automatic power-down when chip is deselected
• CMOS low power operation
- 17 W (typical) CMOS standby
- 50 mW (typical) operating
• TTL compatible interface levels
• Single 3.3V power supply
• Fully static operation: no clock or refresh required
• Three-state outputs
• Industrial and Automotive temperatures available
• Lead-free available

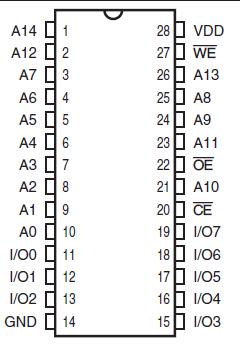

Pinout

Connection Diagram




Specifications

Symbol Parameter Value Unit
VTERM Terminal Voltage with Respect to GND 0.5 to +4.6 V
TBIAS Temperature Under Bias 55 to +125
TSTG Storage Temperature 65 to +150
PT Power Dissipation 0.5 W
IOUT DC Output Current (LOW) 20 mA

Note:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.






Description

The ISSI IS62/65LV256AL is a very high-speed, low power, 32,768-word by 8-bit static RAM. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 15 ns maximum.

WhenCE is HIGH (deselected), the device assumes a standby mode at which the power dissipation is reduced to 150 W (typical) with CMOS input levels.

Easy memory expansion is provided by using an active LOW Chip Enable (CE). The active LOW Write Enable (WE) controls both writing and reading of the memory.

The IS62/65LV256AL is available in the JEDEC standard 28-pin SOJ, 28-pin SOP, and the 28-pin 450-mil TSOP package.
