IS65C256

Features: • High-speed access time: 20 ns• Low active power: 200 mW (typical)• Low standby power:250 µW (typical) CMOS standby• Fully static operation: no clock or refreshrequired• TTL compatible inputs and outputs• Single 5V power supply• Temperatur...

product image

IS65C256 Picture
See larger image
SeekIC No. : 004379297 Detail

IS65C256: Features: • High-speed access time: 20 ns• Low active power: 200 mW (typical)• Low standby power:250 µW (typical) CMOS standby• Fully static operation: no clock or refr...

IS65C256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS65C256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed access time: 20 ns
• Low active power: 200 mW (typical)
• Low standby power:250 µW (typical) CMOS standby
• Fully static operation: no clock or refreshrequired
• TTL compatible inputs and outputs
• Single 5V power supply
• Temperature Offerings:
  Option A1: 40to +85
  Option A2: 40 to +105
  Option A3: 40to +125


Pinout

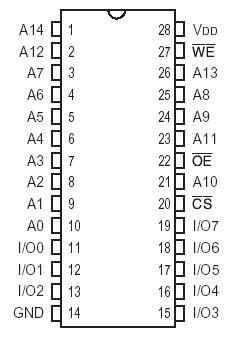

Connection Diagram


Description

The ISSI IS65C256 is a low power, 32,768 word by 8-bitCMOS static RAM. It is fabricated using ISSI's highperformance,low power CMOS technology.
When CS is HIGH (deselected), the device assumes astandby mode at which the power dissipation can bereduced down to 250 µW (typical) at CMOS input levels.
Easy memory expansion is provided by using an activeLOW Chip Select (CS) input and an active LOW OutputEnable (OE) input. The active LOW Write Enable (WE)controls both writing and reading of the memory.
The IS65C256 is Packaged in the JEDEC Standard 28-PinSOP and 28-Pin TSOP (Type I).
