Features: *Fast access time:
*117, 100 MHz
*Internal self-timed write cycle
*Individual Byte Write Control and Global Write
*Clock controlled, registered address, data and control
*Pentium?or linear burst sequence control using MODE input
*Five chip enables for simple depth expansion and address pipelining
*Common data inputs and data outputs
*Power-down control by ZZ input
*JEDEC 128-Pin TQFP 14mm x 20mm package
*Single +3.3V power supply
*Control pins mode upon power-up:
*MODE in interleave burst mode

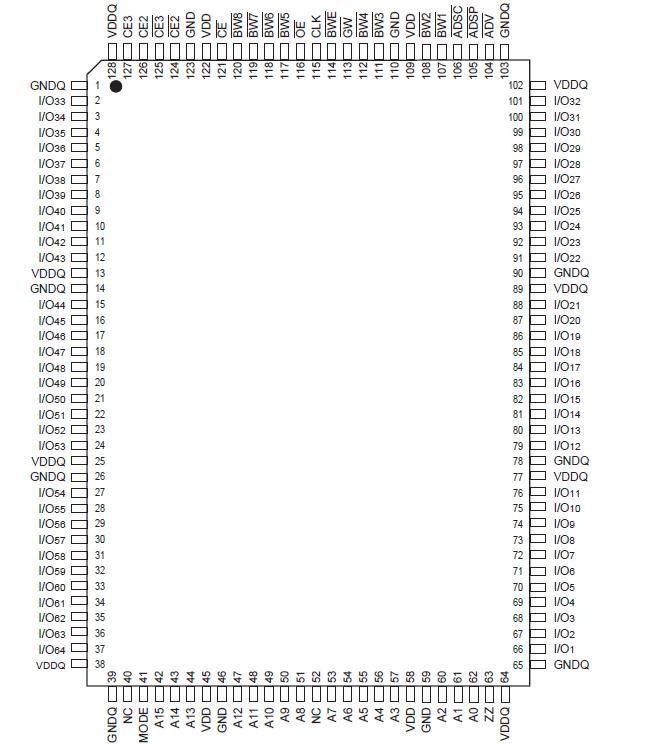

*ZZ in normal operation mode These control pins can be connected to GNDQ or VDDQ to alter their power-up statePinout
Specifications
| Symbol |
Parameter |
Value |
Unit |
| PD |
Power Dissipation |
1.0 |
W |
| VIN, VOUT |
Voltage Relative to GND for I/O Pins |
0.5 to VDDQ + 0.3 |
V |
| VIN |
Voltage Relative to GND for
for Address and Control Inputs |
0.5 to 5.5 |
V |
| VDD |
Voltage on VDD Supply Relative to GND |
0.5 to 4.6 |
V |
DescriptionThe ISSI IS61SP6464 is a high-speed, low-power synchronous static RAM designed to provide a burstable, high-performance, secondary cache for the i486™, Pentium™, 680X0™, and
PowerPC™ microprocessors. IS61SP6464 is organized as 65,536 words by 64 bits, fabricated with ISSI's advanced CMOS technology. The IS61SP6464 integrates a 2-bit burst counter, high-speed SRAM
core, and high-drive capability outputs into a single monolithic circuit. All synchronous inputs pass through registers controlled by a positive-edge-triggered single clock input.
Write cycles IS61SP6464 are internally self-timed and are initiated by the rising edge of the clock input. Write cycles can be from one to eight bytes wide as controlled by the write control inputs.
Separate byte enables allow individual bytes to be written. BW1 controls I/O1-I/O8, BW2 controls I/O9-I/O16, BW3 controls I/ O17-I/O24, BW4 controls I/O25-I/O32, BW5 controls
I/O33-I/O40, BW6 controls I/O41-I/O48, BW7 controls I/O49-I/ O56, BW8 controls I/O57-I/O64, conditioned by BWE being LOW. A LOW on GW input would cause all bytes to be written.
Bursts can be initiated with either ADSP (Address Status Processor) or ADSC (Address Status Cache Controller) input pins. Subsequent burst addresses can be generated internally
by the IS61SP6464 and controlled by the ADV (burst address advance) input pin.
Asynchronous signals include output enable (OE), sleep mode input (ZZ), and burst mode input (MODE). A HIGH input on the ZZ pin puts the SRAM in the power-down state. When ZZ is
pulled LOW (or no connect), the SRAM normally operates after the wake-up period. A LOW input, i.e., GNDQ, on MODE pin selects LINEAR Burst. A VDDQ (or no connect) on MODE pin
selects INTERLEAVED Burst.
IS61SP6464 Data Sheet
