Features: • 100 percent bus utilization• No wait cycles between Read and Write• Internal self-timed write cycle• Individual Byte Write Control• Single Read/Write control pin• Clock controlled, registered address, data and control• Interleaved or linear bur...
IS61NLF25672: Features: • 100 percent bus utilization• No wait cycles between Read and Write• Internal self-timed write cycle• Individual Byte Write Control• Single Read/Write contro...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: • Internal self-timed write cycle• Individual Byte Write Control and Global ...
Features: • Internal self-timed write cycle• Individual Byte Write Control and Global ...
Features: • Internal self-timed write cycle• Individual Byte Write Control and Global ...
Symbol |
Parameter |
Value |
Unit |
TSTG |
Storage Temperature |
65 to +150 |
°C |
PD |
Power Dissipation |
1.6 |
W |
IOUT |
Output Current (per I/O) |
100 |
mA |
VIN, VOUT |
Voltage Relative to VSS for I/O Pins |
0.5 to VDDQ + 0.3 |
V |
VIN |
Voltage Relative to VSS for for Address and Control Inputs |
0.3 to 4.6 |
V |

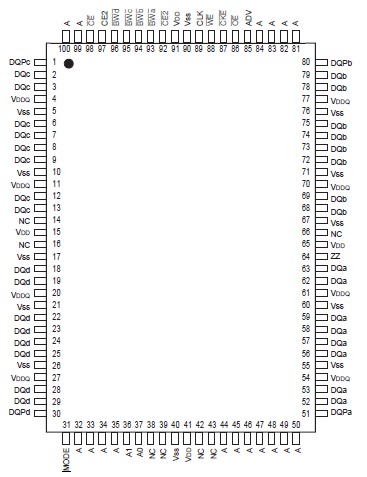

The 18 Meg 'NLF/NVF' product family IS61NLF25672 feature high-speed, low-power synchronous static RAMs designed to provide a burstable, high-performance, 'no wait' state, device for networking and communications applications. They are organized as 256K words by 72 bits, 512K words by 36 bits and 1M words by 18 bits, fabricated with ISSI's advanced CMOS technology.
Incorporating a 'no wait' state feature, wait cycles are eliminated when the bus switches from read to write, or write to read. This IS61NLF25672 integrates a 2-bit burst counter, high-speed SRAM core, and high-drive capability outputs into a single monolithic circuit.
All synchronous inputs pass through registers IS61NLF25672 are controlled by a positive-edge-triggered single clock input. Operations may be suspended and all synchronous inputs ignored when Clock Enable, CKE is HIGH. In this state the internal device will hold their previous values.
All Read, Write and Deselect cycles IS61NLF25672 are initiated by the ADV input. When the ADV is HIGH the internal burst counter is incremented. New external addresses can be loaded when ADV is LOW.
Write cycles are internally self-timed and are initiated by the rising edge of the clock inputs and when WE is LOW. Separate byte enables allow individual bytes to be written. A burst mode pin (MODE) defines the order of the burst sequence. When tied HIGH, the interleaved burst sequence is selected. When tied LOW, the linear burst sequence is selected.
