IS61LV25616

Features: • High-speed access time:- 7, 8, 10, 12, and 15 ns• CMOS low power operation• Low stand-by power:- Less than 5 mA (typ.) CMOS stand-by• TTL compatible interface levels• Single 3.3V power supply• Fully static operation: no clock or refresh required̶...

product image

IS61LV25616 Picture
See larger image
SeekIC No. : 004379153 Detail

IS61LV25616: Features: • High-speed access time:- 7, 8, 10, 12, and 15 ns• CMOS low power operation• Low stand-by power:- Less than 5 mA (typ.) CMOS stand-by• TTL compatible interface lev...

IS61LV25616 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS61LV25616
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed access time:
- 7, 8, 10, 12, and 15 ns
• CMOS low power operation
• Low stand-by power:
- Less than 5 mA (typ.) CMOS stand-by
• TTL compatible interface levels
• Single 3.3V power supply
• Fully static operation: no clock or refresh required
• Three state outputs
• Data control for upper and lower bytes
• Industrial temperature available

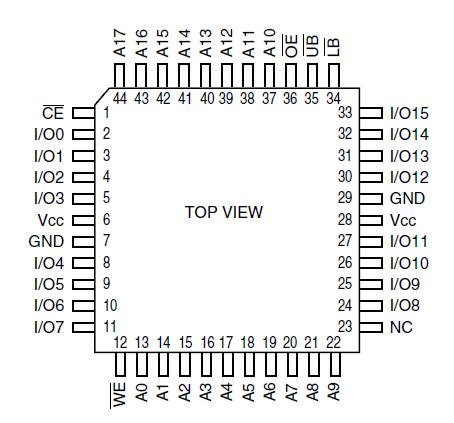

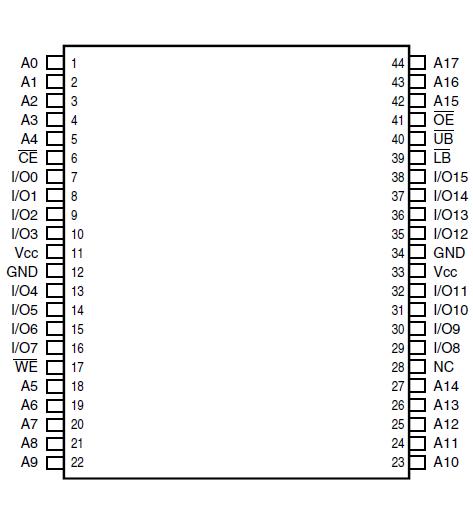

Pinout

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
VTERM Terminal Voltage with Respect to GND 0.5 to Vcc+0.5 V
TBIAS Temperature Under Bias 45 to +90 °C
VCC Vcc Related to GND 0.3 to +4.0 V
TSTG Storage Temperature 65 to +150 °C
PT Power Dissipation 1.0 W



Description

The ISSI IS61LV25616 is a high-speed, 4,194,304-bit static RAM organized as 262,144 words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly
reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.

Easy memory expansion is provided by using Chip Enable and Output Enable inputs, CE and OE. The active LOW Write Enable (WE) controls both writing and reading of the memory.A
data byte allows Upper Byte (UB) and Lower Byte (LB) access.

The IS61LV25616 is packaged in the JEDEC standard44-pin 400-mil SOJ, 44-pin TSOP Type II, 44-pin LQFP and48-pin Mini BGA (8mm x 10mm).
