Features: • Clock Frequency: 200, 166 MHz• Power supply (VDD and VDDQ)DDR 333: 2.5V + 0.2VDDR 400: 2.6V + 0.1V• SSTL 2 interface• Four internal banks to hide row Pre-charge and Active operations• Commands and addresses register on positive clock edges (CK)• Bi-d...
IS43R16160A: Features: • Clock Frequency: 200, 166 MHz• Power supply (VDD and VDDQ)DDR 333: 2.5V + 0.2VDDR 400: 2.6V + 0.1V• SSTL 2 interface• Four internal banks to hide row Pre-charge a...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

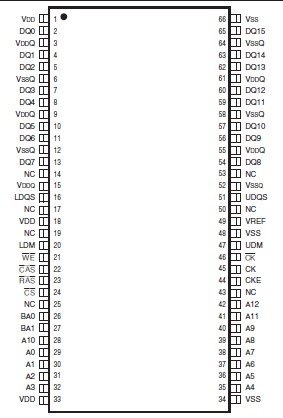

Operating temperature range ...............0 to 70 °C
Storage temperature range ..............-55 to 150 °C
VDDSupply Voltage Relative to VSS.......-1V to +3.6V
VDDQ Supply Voltage Relative to V SS.....-1V to +3.6V
VREF and Inputs Voltage Relative to VSS..-1V to +3.6V
I/O Pins Voltage Relative to VSS....-0.5V to VDDQ+0.5V
Power dissipation .......................................... 1.6 W
Data out current (short circuit) ...................... 50 mA
*Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
The following sequence is required for POWER UP of IS43R16160A.
1. Apply power and attempt to maintain CKE at a low state (all other inputs may be undefined.)
- Apply VDD before or at the same time as VDDQ.
- Apply VDDQ before or at the same time as VTT & Vref.
2. Start clock and maintain stable condition for a minimum of 200us.
3. The minimum of 200us after stable power and clock (CLK, CLK), apply NOP & take CKE high.
4. Precharge all banks.
5. Issue EMRS to enable DLL.(To issue "DLL Enable" command, provide "Low" to A0, "High" to BA0 and "Low" to all of the rest address pins, A1~A11 and BA1)
6. Issue a mode register set command for "DLL reset". The additional 200 cycles of clock input is required to lock the DLL. (To issue DLL reset command, provide "High" to A8 and "Low" to BA0)
7. Issue precharge commands for all banks of the device.
8. Issue 2 or more auto-refresh commands.
9. Issue a mode register set command to initialize device operation. Note1 Every "DLL enable" command resets DLL. Therefore sequence 6 can be skipped during power up. Instead of it, the additional 200 cycles of clock input is required to lock the DLL after enabling DLL.
