IS41LV16100A

Features: • TTL compatible inputs and outputs; tristate I/O• Refresh Interval: - Auto refresh Mode: 1,024 cycles /16 ms - RAS-Only, CAS-before-RAS (CBR), and Hidden• JEDEC standard pinout• Single power supply: - 3.3V ± 10% (IS41LV16100A)• Byte Write and Byte Read oper...

product image

IS41LV16100A Picture
See larger image
SeekIC No. : 004379004 Detail

IS41LV16100A: Features: • TTL compatible inputs and outputs; tristate I/O• Refresh Interval: - Auto refresh Mode: 1,024 cycles /16 ms - RAS-Only, CAS-before-RAS (CBR), and Hidden• JEDEC standard...

IS41LV16100A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS41LV16100A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• TTL compatible inputs and outputs; tristate I/O
• Refresh Interval:
   - Auto refresh Mode: 1,024 cycles /16 ms
   - RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply:
   - 3.3V ± 10% (IS41LV16100A)
• Byte Write and Byte Read operation via two CAS
• Industrial Temperature Range: -40 to +85
• Lead-free available

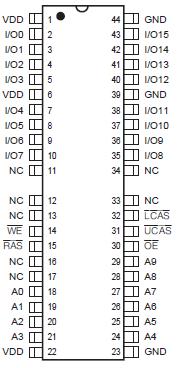

Pinout

Connection Diagram


Specifications

Symbol Parameters
Rating
Unit
VT Voltage on Any Pin Relative to GND 3.3V 0.5 to +4.6
V
VDD Supply Voltage                                 3.3V 0.5 to +4.6
V
IOUT Output Current
50
mA
PD Power Dissipation
1
W
TA Commercial Operation Temperature
Industrial Operationg Temperature
0 to +70
40 to +85

TSTG Storage Temperature
55 to +125
Note:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The ISSI IS41LV16100A is 1,048,576 x 16-bit high-performance cycle access called EDO Page Mode. EDO Page Mode allows 1,024 random accesses within a single row with access cycle time as short as 20 ns per 16-bit word.

These features make the IS41LV16100A ideally suited forhigh-bandwidth graphics, digital signal processing, highperformance computing systems, and peripheral applications.

The IS41LV16100A is packaged in a 42-pin 400-mil SOJ and 400-mil 50- (44-) pin TSOP (Type II).
